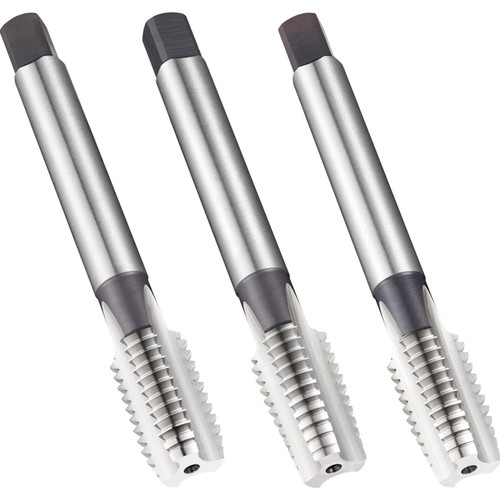

Set of straight flute hand taps NO6 for Unified National Coarse thread UNC 5/16" with 18 TPI and 2B class of fit, consisting of 1 tap with a 6-8xP taper lead, 1 tap with a 4-6xP plug lead and 1 tap with a 2-3xP semi-bottoming lead, dimensions according to ISO 529 standard with 8.0mm shank and 6.3mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining steel and copper or copper alloys.
Product Specifications
| Connection Diameter (Inch) | 0.315" |
| Overall Length (Inch) | 2.8346" |
| Clamping Width (mm) | 6.3mm |
| Thread Diameter (mm) | 7.938mm |
| No of Flutes | 3 |
| Usable Length (mm) | 29mm |
| Clamping Length | 9 |
| Thread Diameter Size | 5/16 |
| Threading Length (mm) | 16mm |
| Material Code | HSS |
| Thread Tolerance Class | 2B |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Thread Form | UNC-Unified Coarse |
