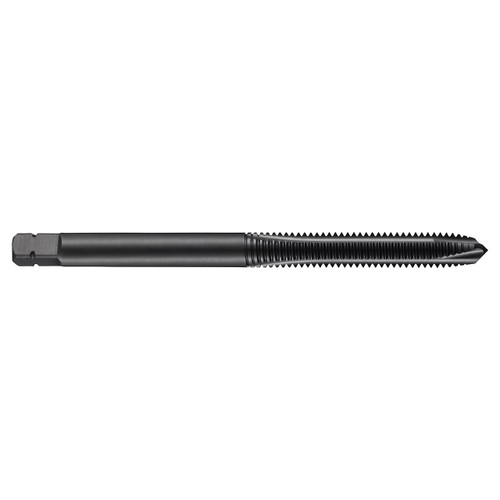

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for British Standard Whitworth thread BSW 1/2" with 12 TPI and Medium class of fit, dimensions according to ISO 529 standard with 9.0mm shank and 7.1mm square drive, HSS with steam tempered surface finish for 2.5xD through hole threading in alloy steel.
Product Specifications
| Connection Diameter (Inch) | 0.3543" |
| Overall Length (Inch) | 3.5039" |
| Clamping Width (mm) | 7.1mm |
| Thread Diameter (mm) | 12.7mm |
| No of Flutes | 3 |
| Thread Diameter Size | 1/2 |
| Threading Length (mm) | 22mm |
| Material Code | HSS |
| Thread Tolerance Class | Medium |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black |
| Thread Form | BSW-British standard Whitworth |
