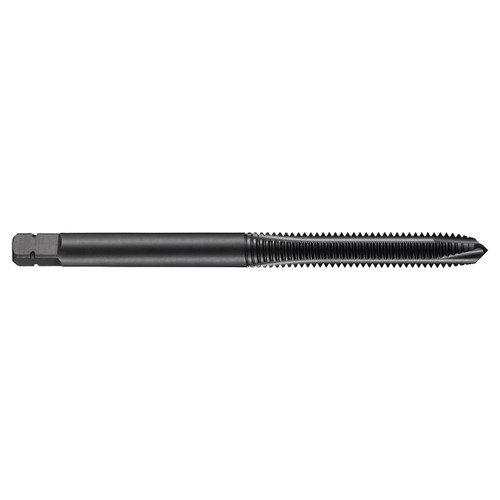

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for British Association thread BA 10 with 0.35mm pitch and Normal class of fit, dimensions according to ISO 529 standard with 2.5mm shank and 2.0mm square drive, HSS with steam tempered surface finish for 2.5xD through hole threading in plain carbon and alloy steel and ferritic and austenitic stainless steel.
Product Specifications
| Connection Diameter (Inch) | 0.0984" |
| Overall Length (Inch) | 1.6142" |
| Clamping Width (mm) | 2mm |
| Thread Diameter (mm) | 1.7mm |
| No of Flutes | 2 |
| Usable Length (mm) | 7mm |
| Thread Pitch (mm) | 0.35mm |
| Clamping Length | 4 |
| Thread Diameter Size | BA10 |
| Threading Length (mm) | 7mm |
| Material Code | HSS |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black |
| Thread Form | BA-British association |
