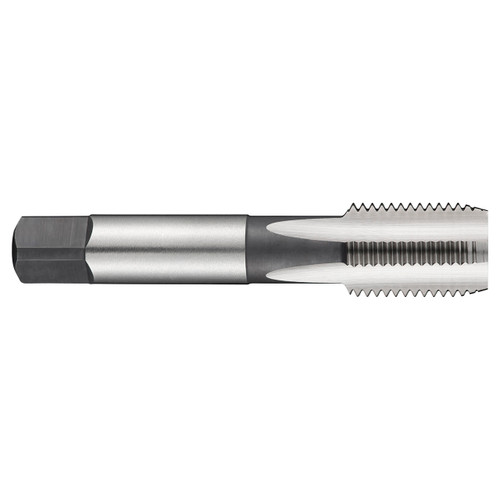

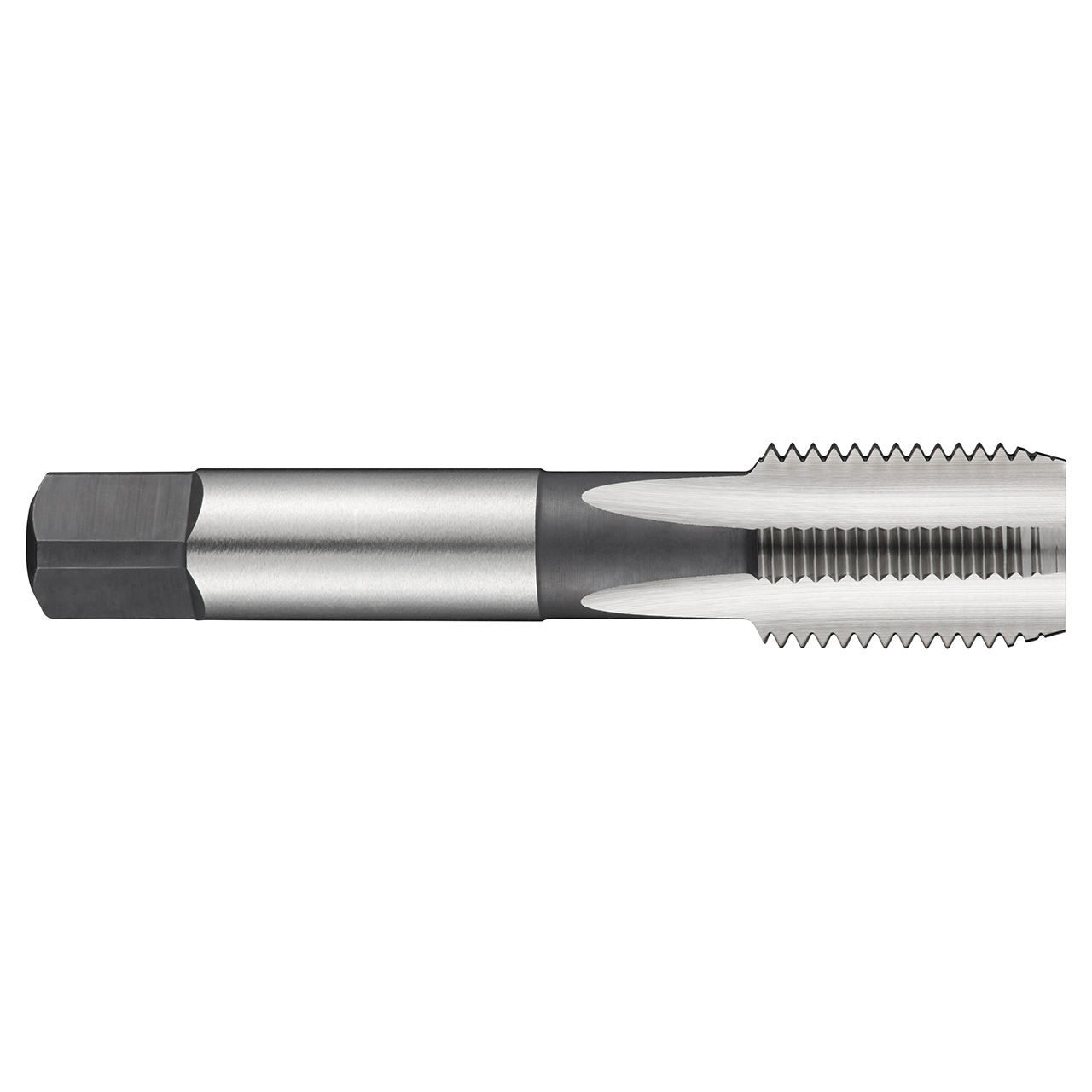

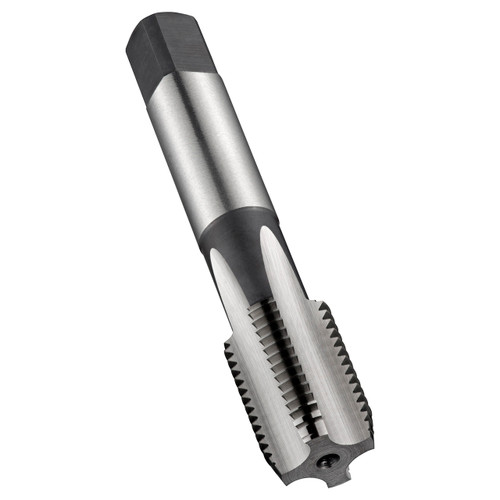

Straight flute hand tap NO2 with a 4-6xP plug lead, for British Standard Pipe thread G 3/4" with 14 TPI and Normal class of fit, dimensions according to ISO 2284 standard with 20.0mm shank and 16.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.
Product Specifications
| Connection Diameter (Inch) | 0.7874" |
| Overall Length (Inch) | 3.7795" |
| Clamping Width (mm) | 16mm |
| Thread Diameter (mm) | 26.441mm |
| No of Flutes | 4 |
| Clamping Length | 20 |
| Thread Diameter Size | 3/4 |
| Threading Length (mm) | 28mm |
| Material Code | HSS |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Thread Form | G-British standard pipe fastening-G series |
