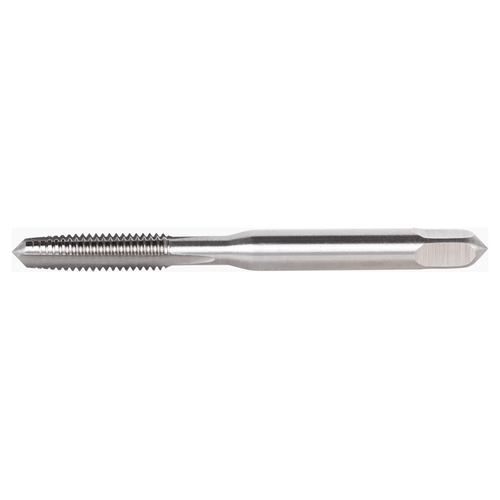

Thread size M4 mm x 0.7 mm, with thread tolerance class 93707.
Product Specifications
| Manufacturer Part Number | E559M4NO2 |
| Connection Diameter (mm) | 4.00mm |
| Usable Length (mm) | 21.00mm |
| Thread Diameter Size | 4" |
| Overall Length (mm) | 53.00mm |
| Thread Length (mm) | 13.00mm |
| Thread Diameter (mm) | 4.00mm |
| Thread Pitch (mm) | 0.70mm |
| Premachined Hole Diameter (mm) | 3.30mm |
| Clamping Length (mm) | 6.00mm |
| Clamping Width (mm) | 3.15mm |
| Number of Flutes | 3 |
| Tap Chamfer Style | B 3.5 - 5 |
| Thread Form | M - Metric Coarse |
| Flute Geometry | Straight Flute Geometry |
| Cutting Direction | Right Hand |
| Basic Standard Group | ISO 529 |
| Material | HSS |
| Coating | Bright |
| Product Type | Straight Flute Tap |
| Country of Origin | India |
