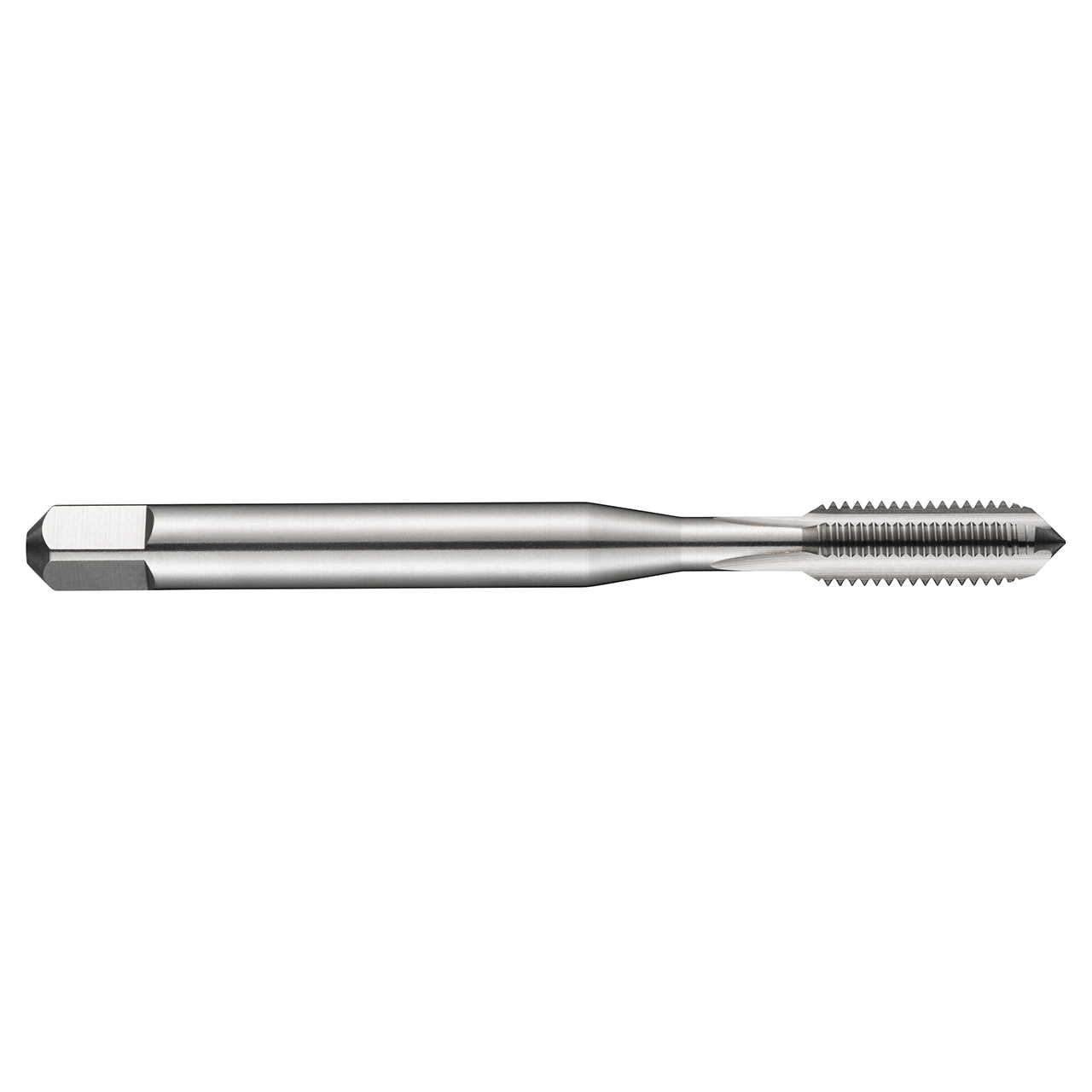

Dormer E620M3 | 0.1575" Diameter x 2.0866" OAL 3 Flute Bright Coated Straight Flute Tap

$29.80
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15024147
Weight:
0.30 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for Einsatzgewinde Metrisch (metric Wire Insert thread) EGM3 with 0.50mm pitch and 6H class of fit, dimensions according to DORMER-ISO standard with 4.0mm shank and 3.15mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.


Product Specifications
Connection Diameter (Inch)0.1575"
Overall Length (Inch)2.0866"
Clamping Width (mm)3.15mm
Thread Diameter (mm)3.65mm
No of Flutes3
Usable Length (mm)14mm
Thread Pitch (mm)0.5mm
Clamping Length6
Thread Diameter Size3
Threading Length (mm)14mm
Material CodeHSS
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleC 2-3
Surface ColorBright Silver
Thread FormEGM-EGM (Wire Insert)
