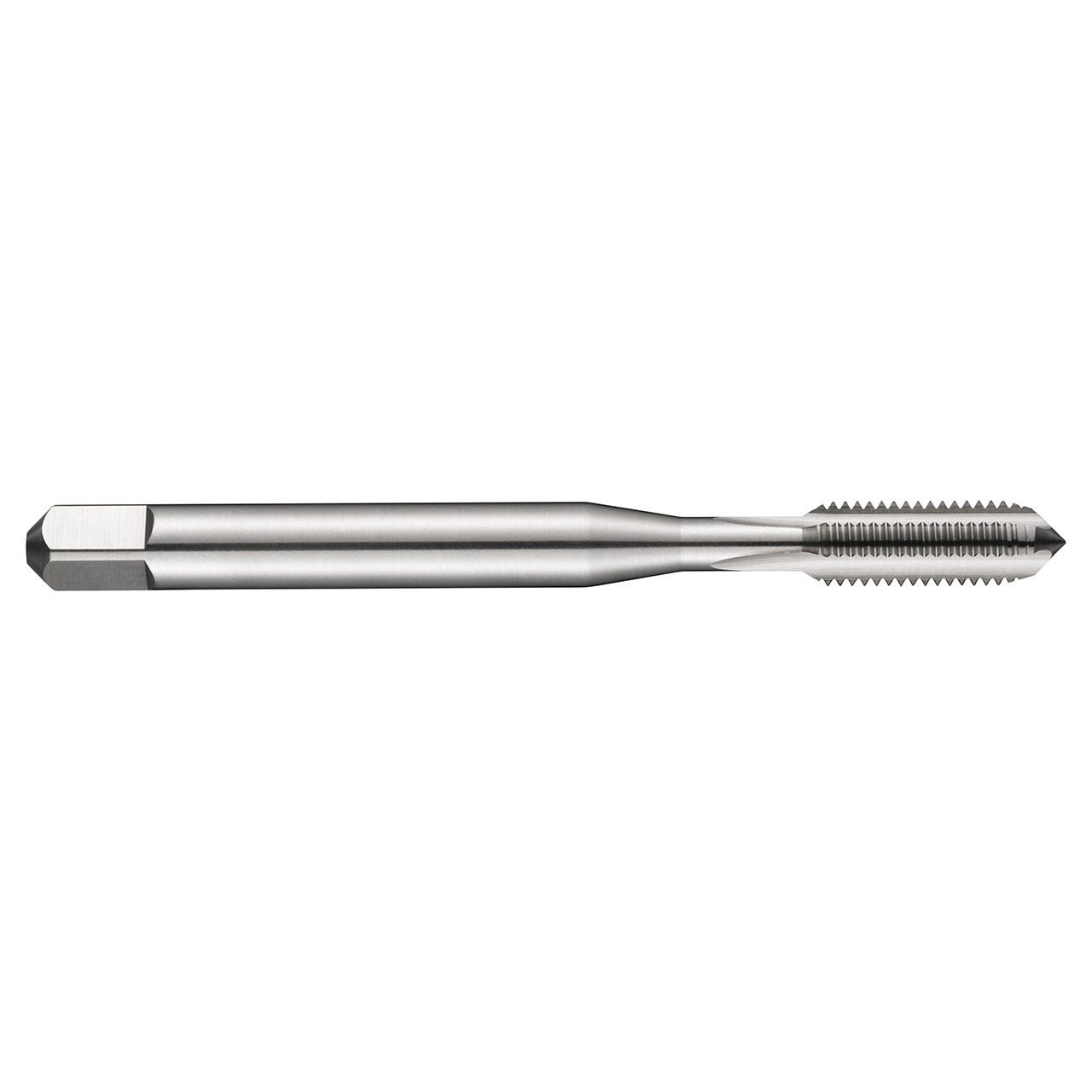

Dormer E620M5 | 0.248" Diameter x 2.5984" OAL 3 Flute Bright Coated Straight Flute Tap

$29.46
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15024149
Weight:
0.58 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for Einsatzgewinde Metrisch (metric Wire Insert thread) EGM5 with 0.80mm pitch and 6H class of fit, dimensions according to DORMER-ISO standard with 6.3mm shank and 5.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.


Product Specifications
Connection Diameter (Inch)0.248"
Overall Length (Inch)2.5984"
Clamping Width (mm)5mm
Thread Diameter (mm)6.04mm
No of Flutes3
Usable Length (mm)26mm
Thread Pitch (mm)0.8mm
Clamping Length8
Thread Diameter Size5
Threading Length (mm)13mm
Material CodeHSS
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleC 2-3
Surface ColorBright Silver
Thread FormEGM-EGM (Wire Insert)
