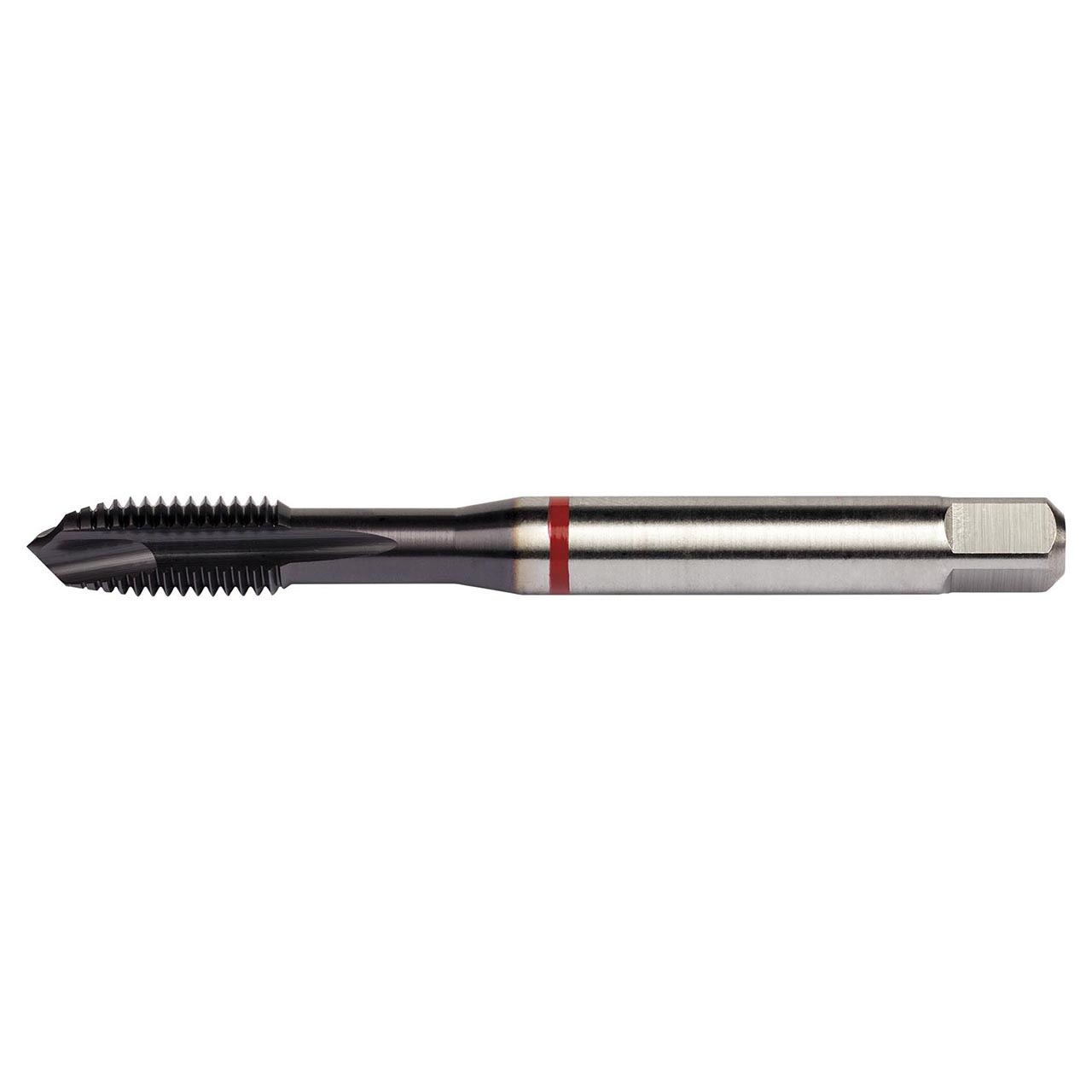

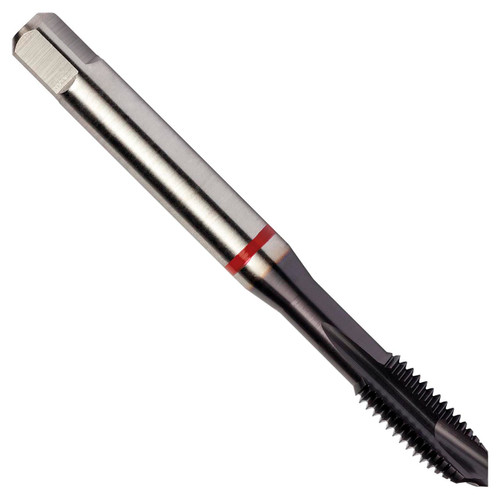

Dormer E627M10 | 0.381" Diameter x 3.937" OAL 3 Flute TiAlN/Top Coated Spiral Point Tap

$42.89
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026039
Weight:
1.96 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral point tap Red Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M10 with 1.50mm pitch and 6H class of fit with D6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3810" shank and 0.2840" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in plain carbon, alloy and tool steel.


Product Specifications
Connection Diameter (Inch)0.381"
Overall Length (Inch)3.937"
No of Flutes3
Usable Length (mm)39mm
Thread Pitch (mm)1.5mm
Clamping Length11
Thread Diameter Size10
Threading Length (mm)20mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingTiAlN/Top
Tap Chamfer StyleB 3.5-5
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
