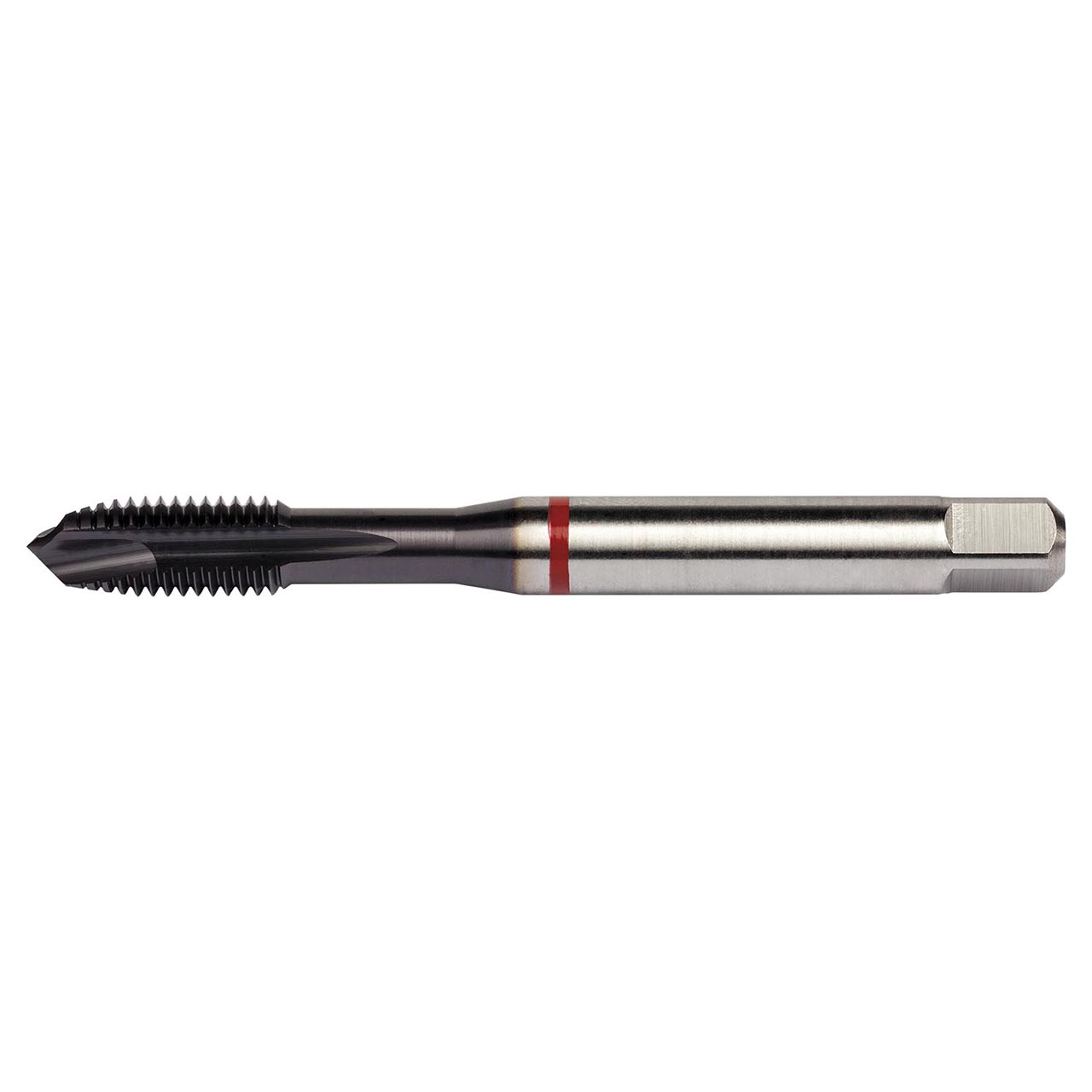

Dormer E627M16 | 0.48" Diameter x 4.3307" OAL 3 Flute TiAlN/Top Coated Spiral Point Tap

$87.30
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026042
Weight:
3.53 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Spiral point tap Red Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M16 with 2.00mm pitch and 6H class of fit with D7 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.4800" shank and 0.3580" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in plain carbon, alloy and tool steel.


Product Specifications
Connection Diameter (Inch)0.48"
Overall Length (Inch)4.3307"
No of Flutes3
Thread Pitch (mm)2mm
Clamping Length14
Thread Diameter Size16
Threading Length (mm)23mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingTiAlN/Top
Tap Chamfer StyleB 3.5-5
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
