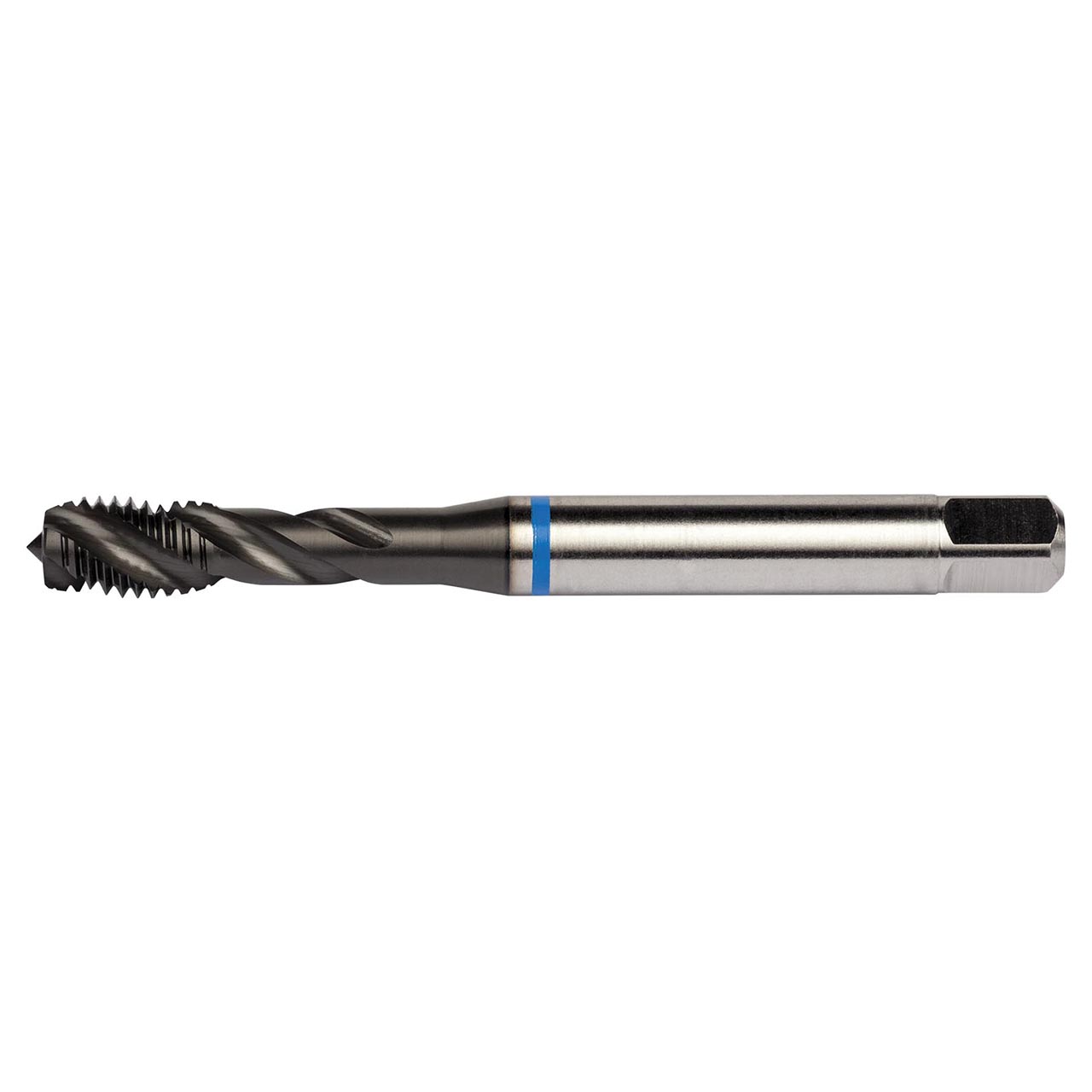

Dormer E628M20 | 0.652" Diameter x 5.5118" OAL 4 Flute SUPER-B Coated Spiral Flute Tap

$591.00 $261.83
(You save $329.17)
Brand:
Dormer
interval quantity:
1
SKU:
15026003
UPC:
7320760752272
Weight:
0.45 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Related Products

Spiral flute tap Blue Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M20 with 2.50mm pitch and 6H class of fit with D7 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.6520" shank and 0.4870" square drive, powder metallurgical HSS-E with Super-B coating and 40 Degree helix angle for 2.5xD blind hole threading in stainless steel.


Product Specifications
Connection Diameter (Inch)0.652"
Overall Length (Inch)5.5118"
No of Flutes4
Flute Helix Angle40
Thread Pitch (mm)2.5mm
Clamping Length18
Thread Diameter Size20
Threading Length (mm)25mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingSUPER-B
Tap Chamfer StyleC 2-3
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
Country of originIndia
