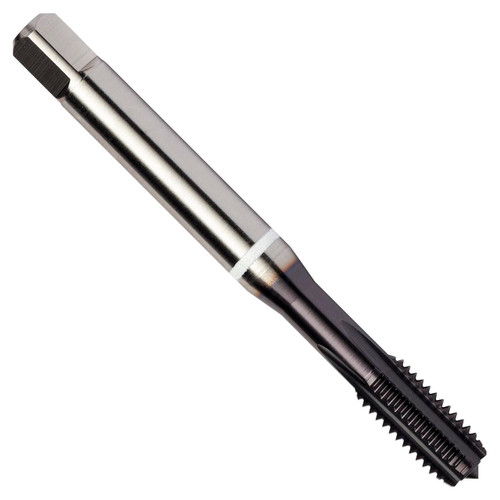

Straight flute tap White Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M12 with 1.75mm pitch and 6H class of fit with D6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3670" shank and 0.2730" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers.
Product Specifications
| Connection Diameter (Inch) | 0.367" |
| Overall Length (Inch) | 4.3307" |
| No of Flutes | 4 |
| Thread Pitch (mm) | 1.75mm |
| Clamping Length | 11 |
| Thread Diameter Size | 12 |
| Threading Length (mm) | 23mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6HX |
| Cutting Direction | Right Hand |
| Coating | TiAlN/Top |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black - Deep Purple |
| Thread Form | M-Metric coarse |
