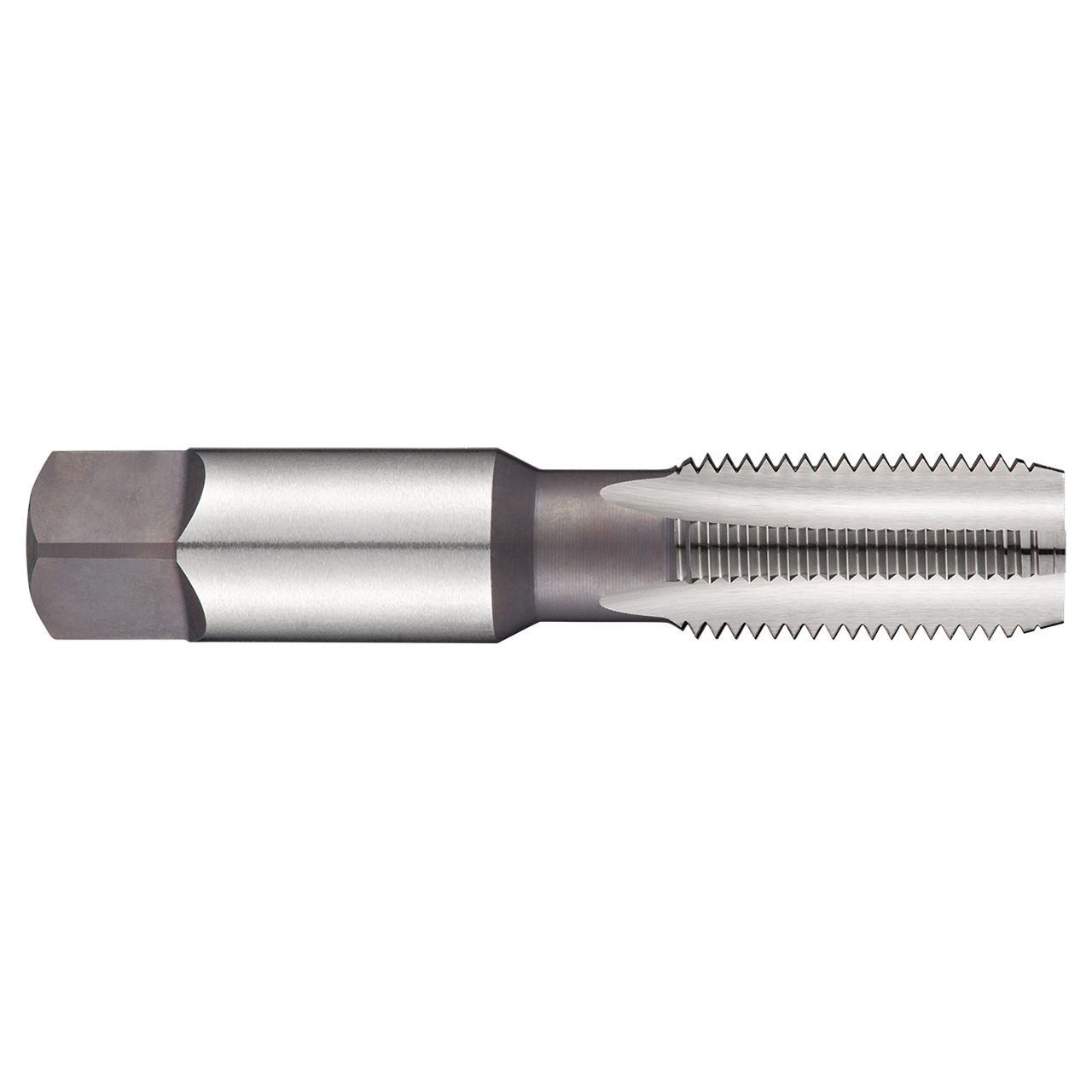

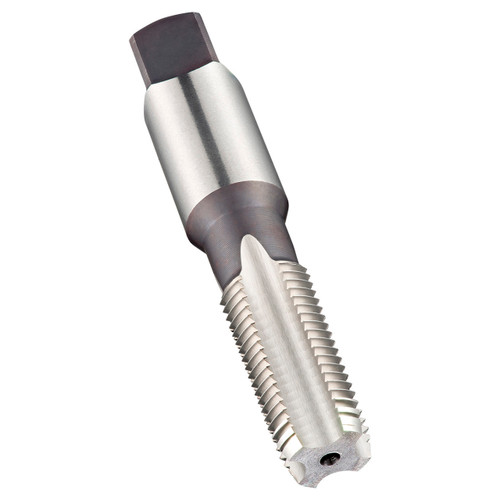

Dormer E7093/4 | 0.9055" Diameter x 4.1339" OAL 5 Flute Bright Coated Standard Pipe Tap

$86.31
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15022917
UPC:
7320760099810
Weight:
10.58 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for (Dryseal) National Pipe Straight thread for Fuel lines NPSF 3/4" with 14 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 23.0mm shank and 17.2mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining, plain carbon and alloy steel and copper or copper alloys.


Product Specifications
Connection Diameter (Inch)0.9055"
Overall Length (Inch)4.1339"
Clamping Width (mm)17.2mm
Thread Diameter (mm)26.67mm
No of Flutes5
Clamping Length17
Thread Diameter Size3/4
Threading Length (mm)35mm
Material CodeHSS
Thread Tolerance ClassNormal
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleC 2-3
Surface ColorBright Silver
Thread FormNPSF-National straight pipe fuel
