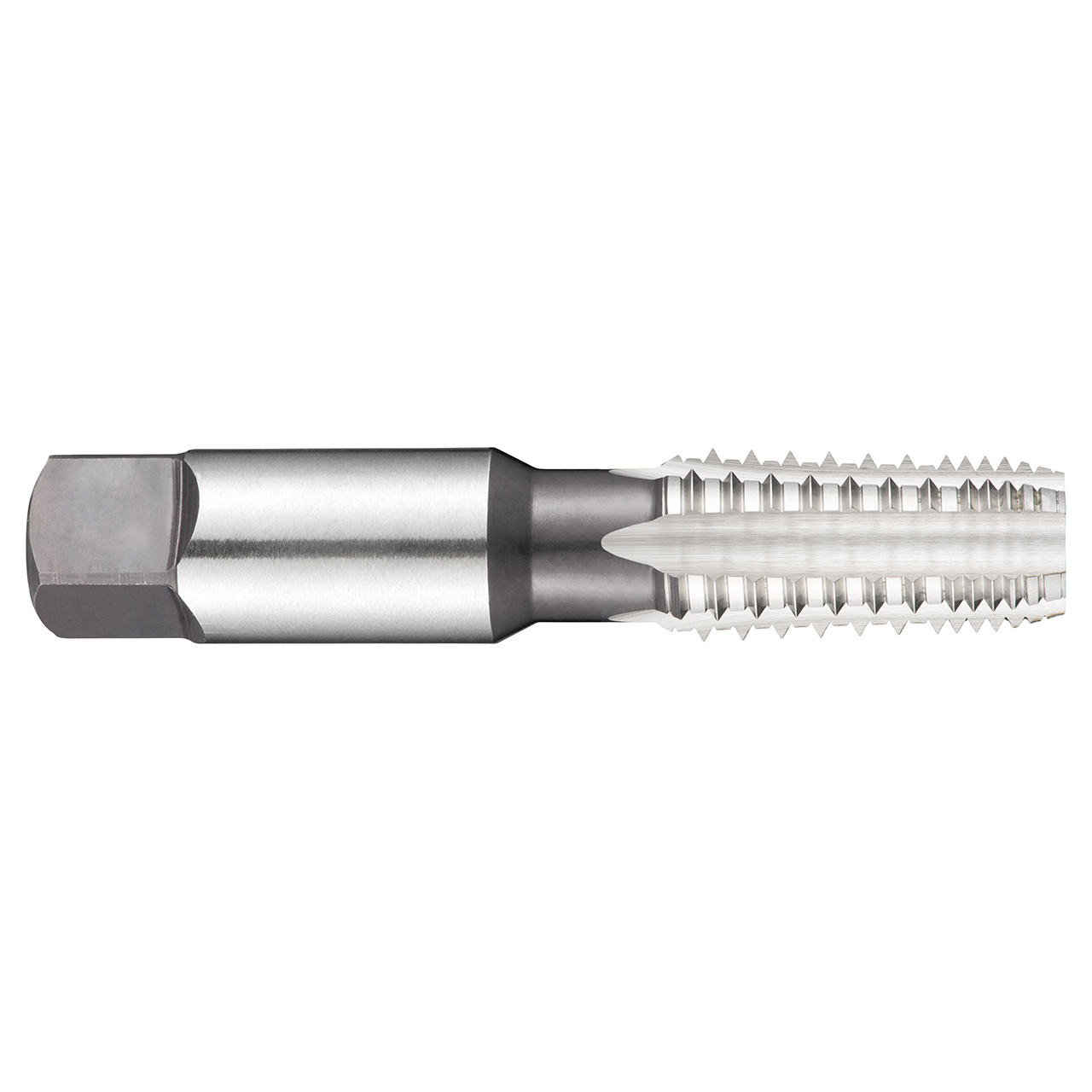

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for National Pipe Taper thread NPT 1.1/2" with 11.5 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 38.1mm shank and 28.6mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in alloy steel.
Product Specifications
| Connection Diameter (Inch) | 1.5" |
| Overall Length (Inch) | 5.315" |
| Clamping Width (mm) | 28.6mm |
| Thread Diameter (mm) | 48.26mm |
| No of Flutes | 7 |
| Clamping Length | 25 |
| Thread Diameter Size | 1.1/2 |
| Threading Length (mm) | 43mm |
| Material Code | HSS |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | NPT-National taper pipe |
| Country of origin | Brazil |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
interval quantity:
1
