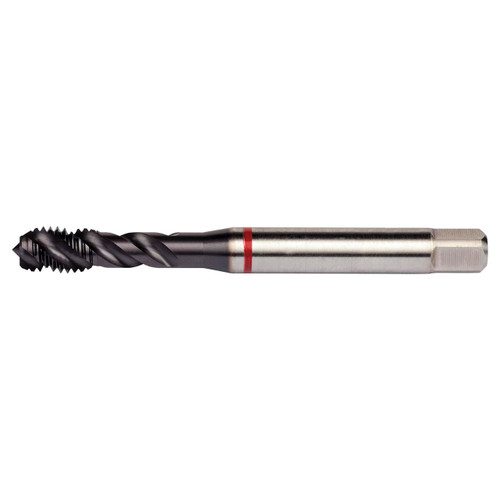

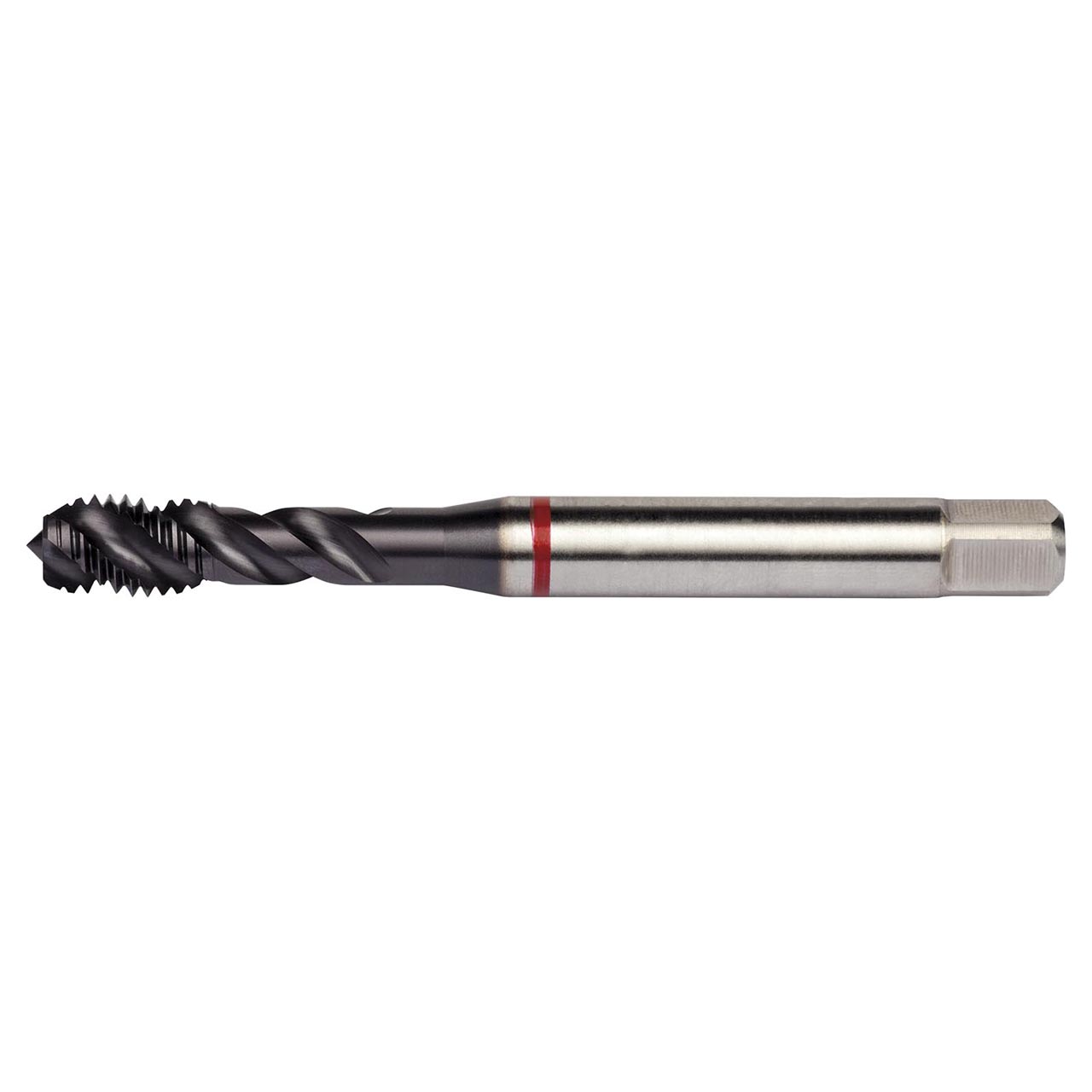

Dormer E9101/2 | 0.367" Diameter 3 Flute TiAlN/Top Coated Spiral Flute Tap

$61.20
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026068
Weight:
1.76 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap Red Shark with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 1/2" with 20 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3670" shank and 0.2730" square drive, powder metallurgical HSS-E with TiAlN-Top coating and 45° helix angle for 2.5xD blind hole threading in plain carbon, alloy and tool steel.


Product Specifications
Connection Diameter (Inch)0.367"
No of Flutes3
Flute Helix Angle45
Thread Diameter Size1/2
Material CodeHSS-E-PM
Thread Tolerance Class2B
Threading Length (Inch)0.709"
Cutting DirectionRight Hand
CoatingTiAlN/Top
Tap Chamfer StyleC 2-3
Surface ColorBlack - Deep Purple
Thread FormUNF-Unified Fine
