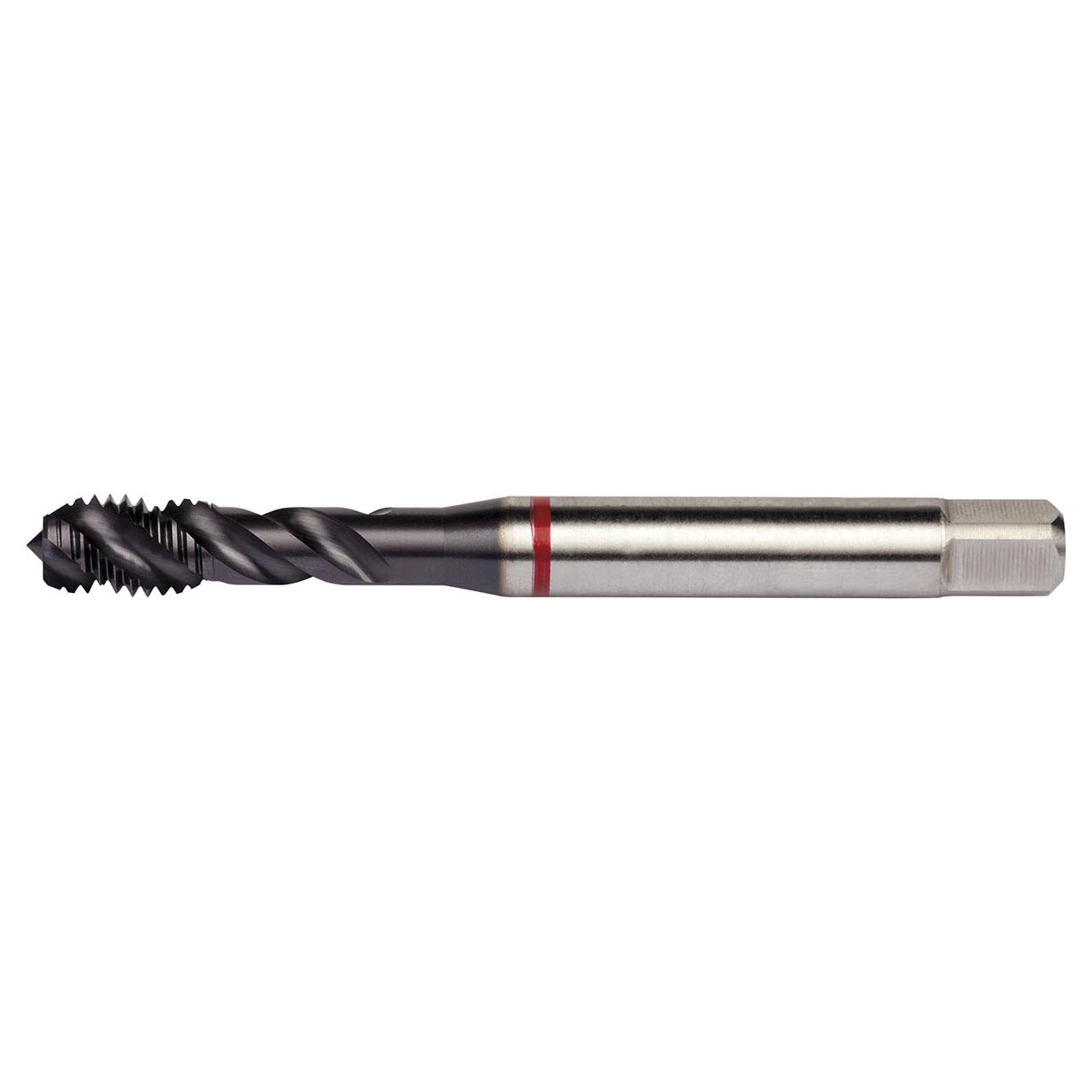

Dormer E9107/8 | 0.697" Diameter 4 Flute TiAlN/Top Coated Spiral Flute Tap

$219.15
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026071
Weight:
7.73 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Spiral flute tap Red Shark with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 7/8" with 14 TPI and 2B class of fit with H6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.6970" shank and 0.5200" square drive, powder metallurgical HSS-E with TiAlN-Top coating and 45° helix angle for 2.5xD blind hole threading in plain carbon, alloy and tool steel.


Product Specifications
Connection Diameter (Inch)0.697"
No of Flutes4
Flute Helix Angle45
Thread Diameter Size7/8
Material CodeHSS-E-PM
Thread Tolerance Class2B
Threading Length (Inch)0.984"
Cutting DirectionRight Hand
CoatingTiAlN/Top
Tap Chamfer StyleC 2-3
Surface ColorBlack - Deep Purple
Thread FormUNF-Unified Fine
