Dormer E9123/4H3 | 0.59" Diameter 4 Flute SUPER-B Coated Spiral Flute Tap

$189.90
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15025989
Weight:
4.78 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

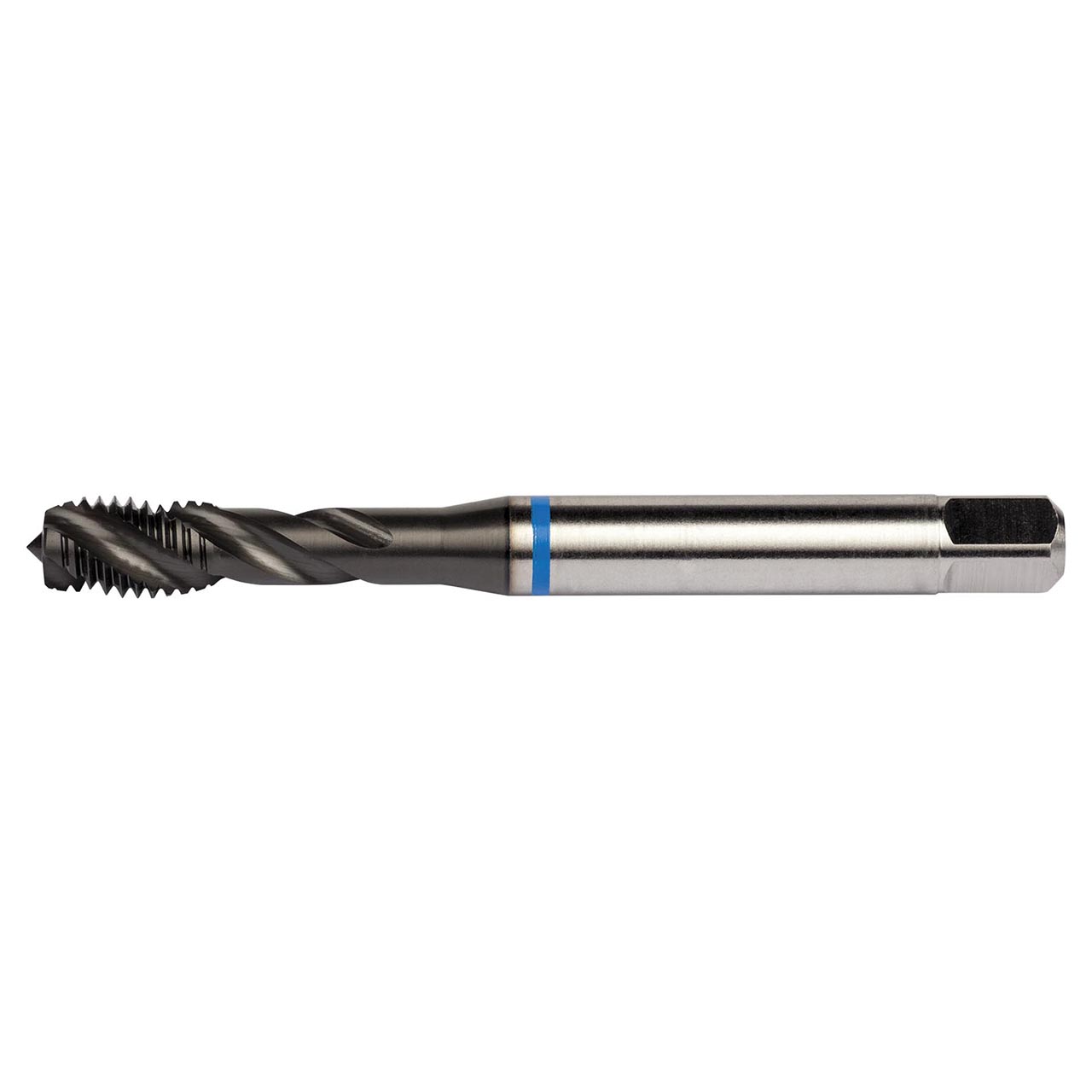

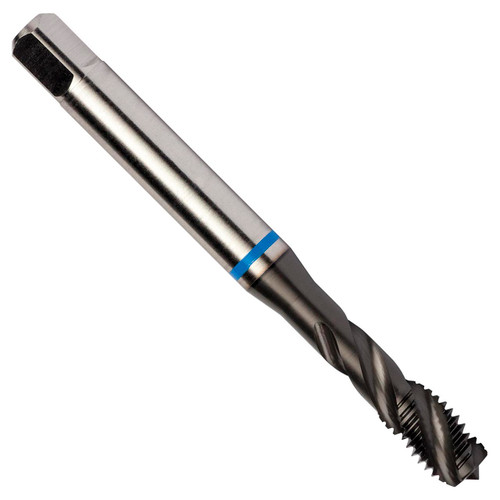

Spiral flute tap Blue Shark with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 3/4" with 16 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.5900" shank and 0.4390" square drive, powder metallurgical HSS-E with Super-B coating and 40° helix angle for 2.5xD blind hole threading in stainless steel.


Product Specifications
Connection Diameter (Inch)0.59"
No of Flutes4
Flute Helix Angle40
Thread Diameter Size3/4
Material CodeHSS-E-PM
Thread Tolerance Class2B-3B
Threading Length (Inch)0.984"
Cutting DirectionRight Hand
CoatingSUPER-B
Tap Chamfer StyleC 2-3
Surface ColorBlack - Deep Purple
Thread FormUNF-Unified Fine
