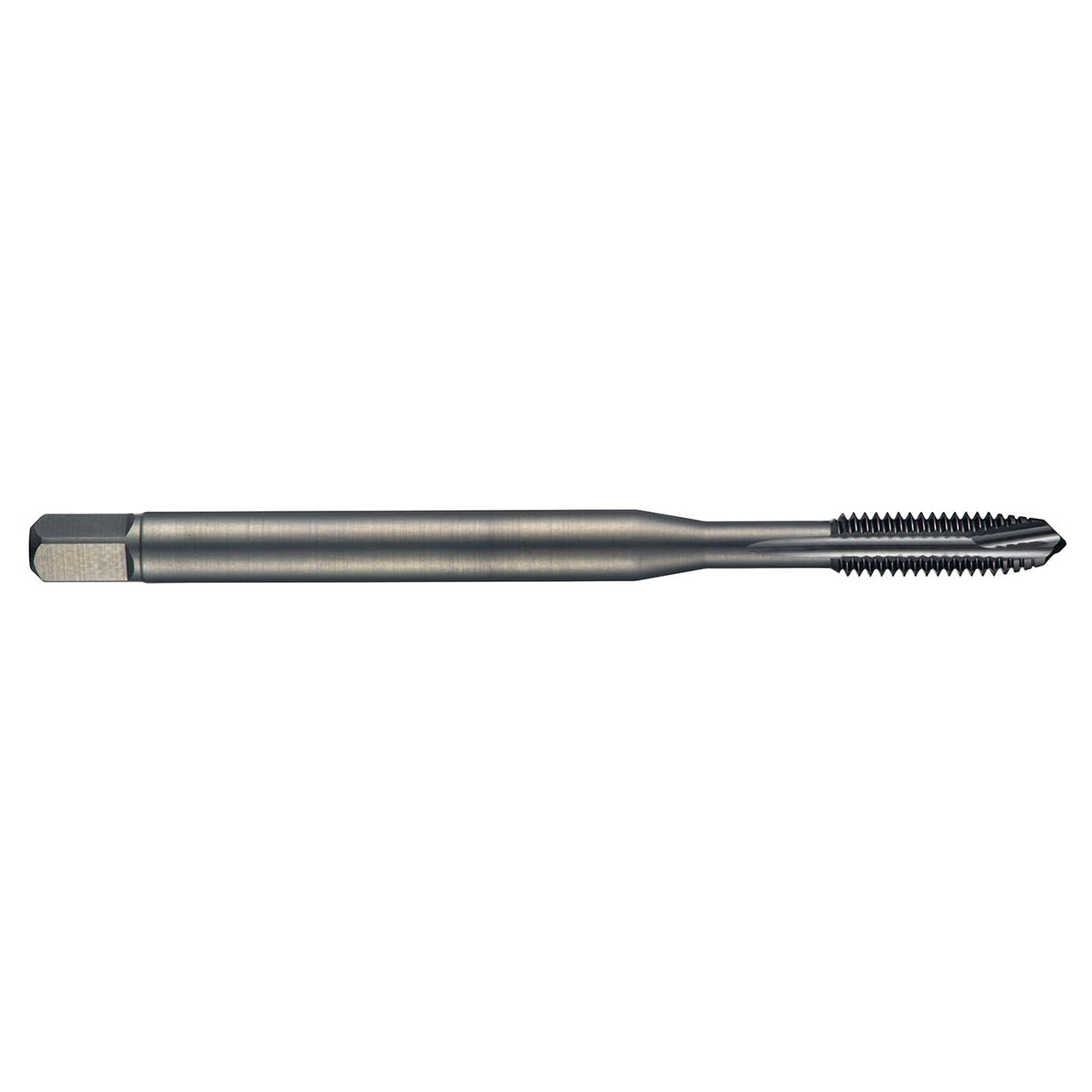

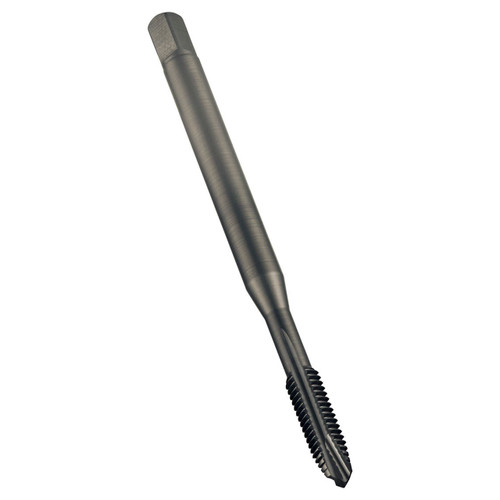

Dormer EP01M18 | 0.5512" Diameter x 4.9213" OAL 4 Flute Steam Tempered Coated Spiral Point Tap

$93.15
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15023069
UPC:
7320760136331
Weight:
5.11 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M18 with 2.50mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 14.0mm shank and 11.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications.


Product Specifications
Connection Diameter (Inch)0.5512"
Overall Length (Inch)4.9213"
Clamping Width (mm)11mm
No of Flutes4
Thread Pitch (mm)2.5mm
Clamping Length14
Thread Diameter Size18
Threading Length (mm)30mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleB 3.5-5
Surface ColorBlack
Thread FormM-Metric coarse
