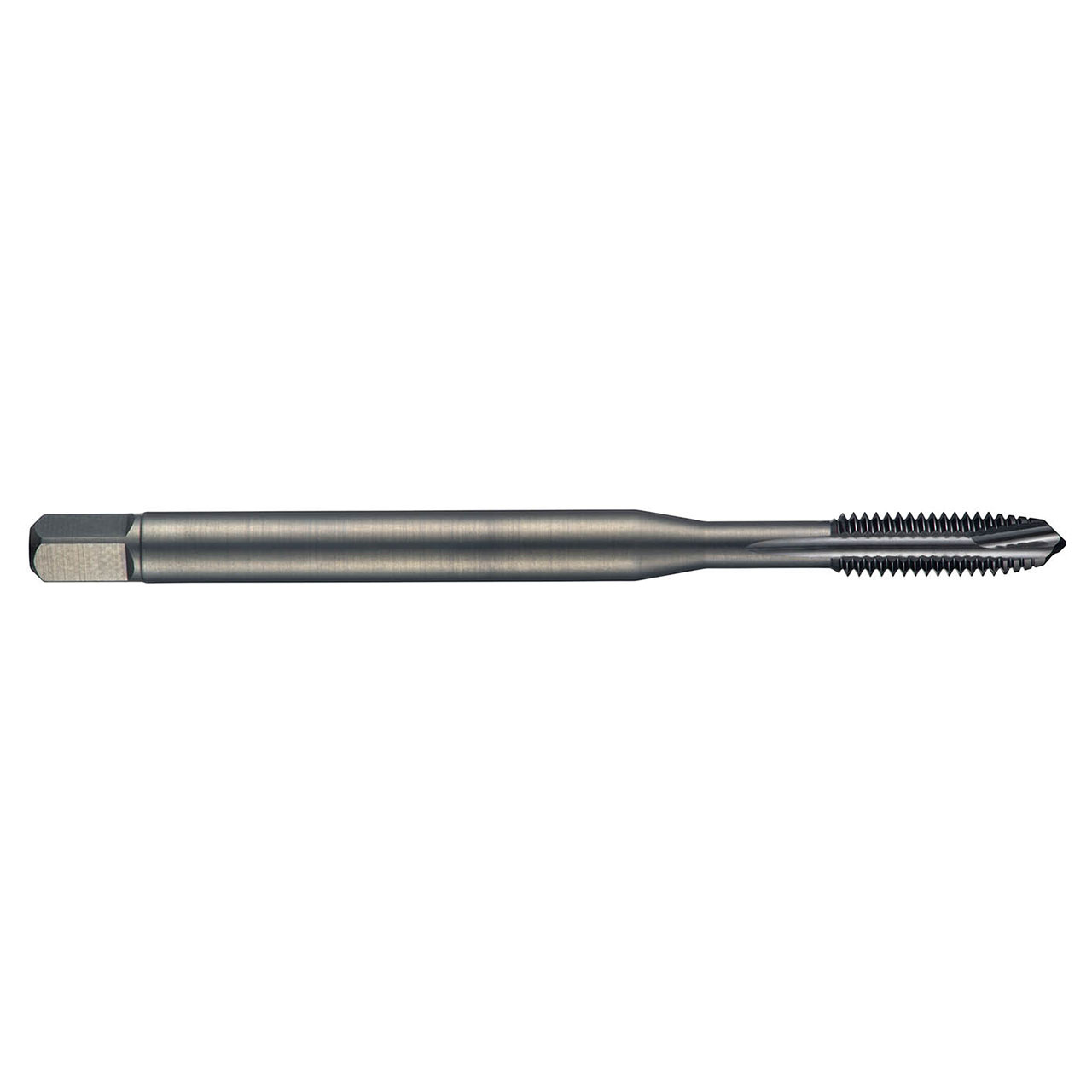

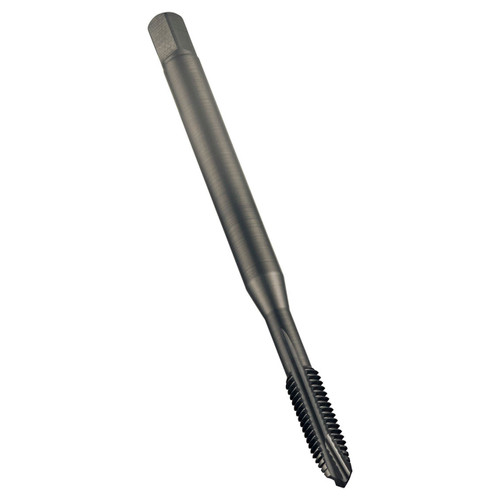

Dormer EP01M7 | 0.2756" Diameter x 3.1496" OAL 3 Flute Steam Tempered Coated Spiral Point Tap

$27.54
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15023061
UPC:
7320760136218
Weight:
0.92 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M7 with 1.00mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 7.0mm shank and 5.5mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications.


Product Specifications
Connection Diameter (Inch)0.2756"
Overall Length (Inch)3.1496"
Clamping Width (mm)5.5mm
No of Flutes3
Usable Length (mm)30mm
Thread Pitch (mm)1mm
Clamping Length8
Thread Diameter Size7
Threading Length (mm)15mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleB 3.5-5
Surface ColorBlack
Thread FormM-Metric coarse
