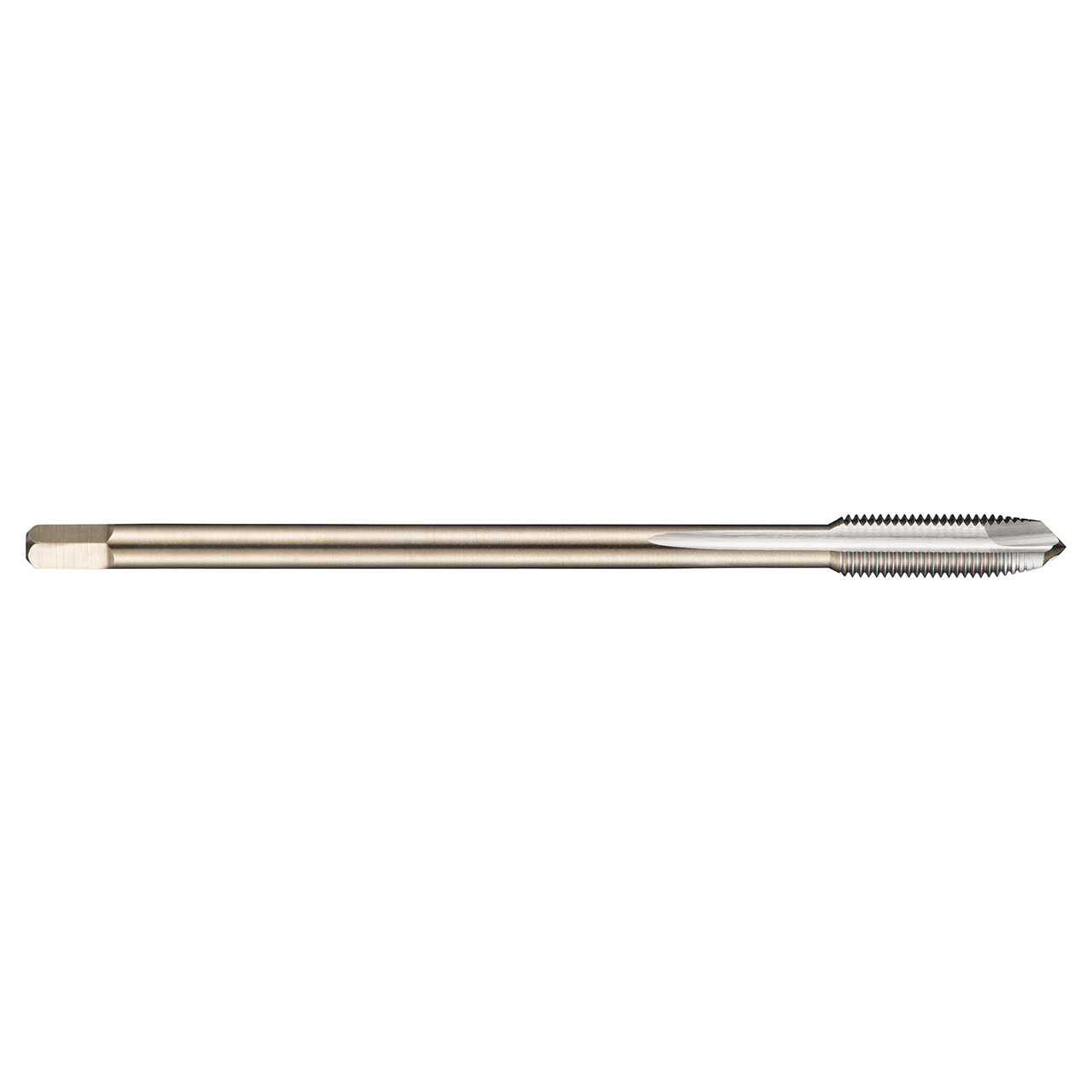

Dormer EP10M10X.75 | 0.2756" Diameter x 3.5433" OAL 3 Flute Bright Coated Spiral Point Tap

$51.75
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15023154
UPC:
7320760137390
Weight:
1.20 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric Fine thread M10 with 0.75mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 7.0mm shank and 5.5mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium.


Product Specifications
Connection Diameter (Inch)0.2756"
Overall Length (Inch)3.5433"
Clamping Width (mm)5.5mm
No of Flutes3
Thread Pitch (mm)0.75mm
Clamping Length8
Thread Diameter Size10
Threading Length (mm)18mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleB 3.5-5
Surface ColorBright Silver
Thread FormMF-Metric fine
