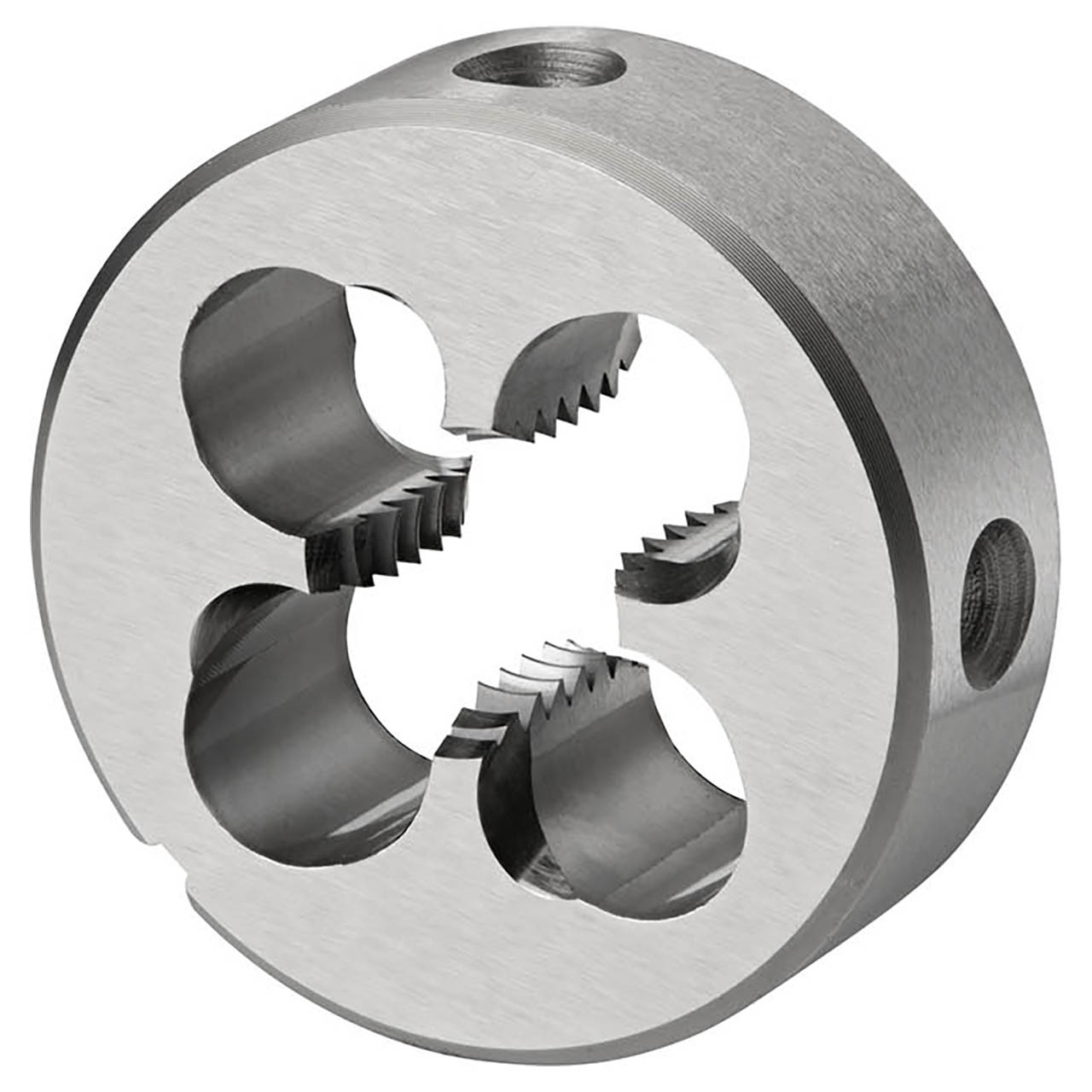

Solid round die with a gun nose, for left hand ISO-Metric thread M3 with 0.50mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 20mm outside diameter and 5mm thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
Product Specifications
| Body Diameter (Inch) | 0.7874" |
| Overall Length (Inch) | 0.1969" |
| Thread Diameter (mm) | 3mm |
| Thread Pitch (mm) | 0.5mm |
| Thread Diameter Size | 3 |
| Material Code | HSS |
| Thread Tolerance Class | 6g |
| Cutting Direction | Left Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Thread Form | M-Metric coarse |
