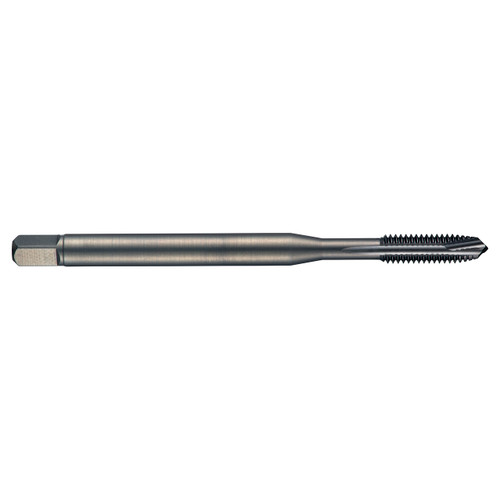

Dormer EP217/8 | 0.7087" Diameter x 5.5118" OAL 4 Flute Steam Tempered Coated Spiral Point Tap

$226.80
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15023237
UPC:
7320760138342
Weight:
9.35 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for Unified National Coarse thread UNC 7/8" with 9 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 18.0mm shank and 14.5mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications.


Product Specifications
Connection Diameter (Inch)0.7087"
Overall Length (Inch)5.5118"
Clamping Width (mm)14.5mm
Thread Diameter (mm)22.225mm
No of Flutes4
Clamping Length17
Thread Diameter Size7/8
Threading Length (mm)34mm
Material CodeHSS-E-PM
Thread Tolerance Class2B
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleB 3.5-5
Surface ColorBlack
Thread FormUNC-Unified Coarse
