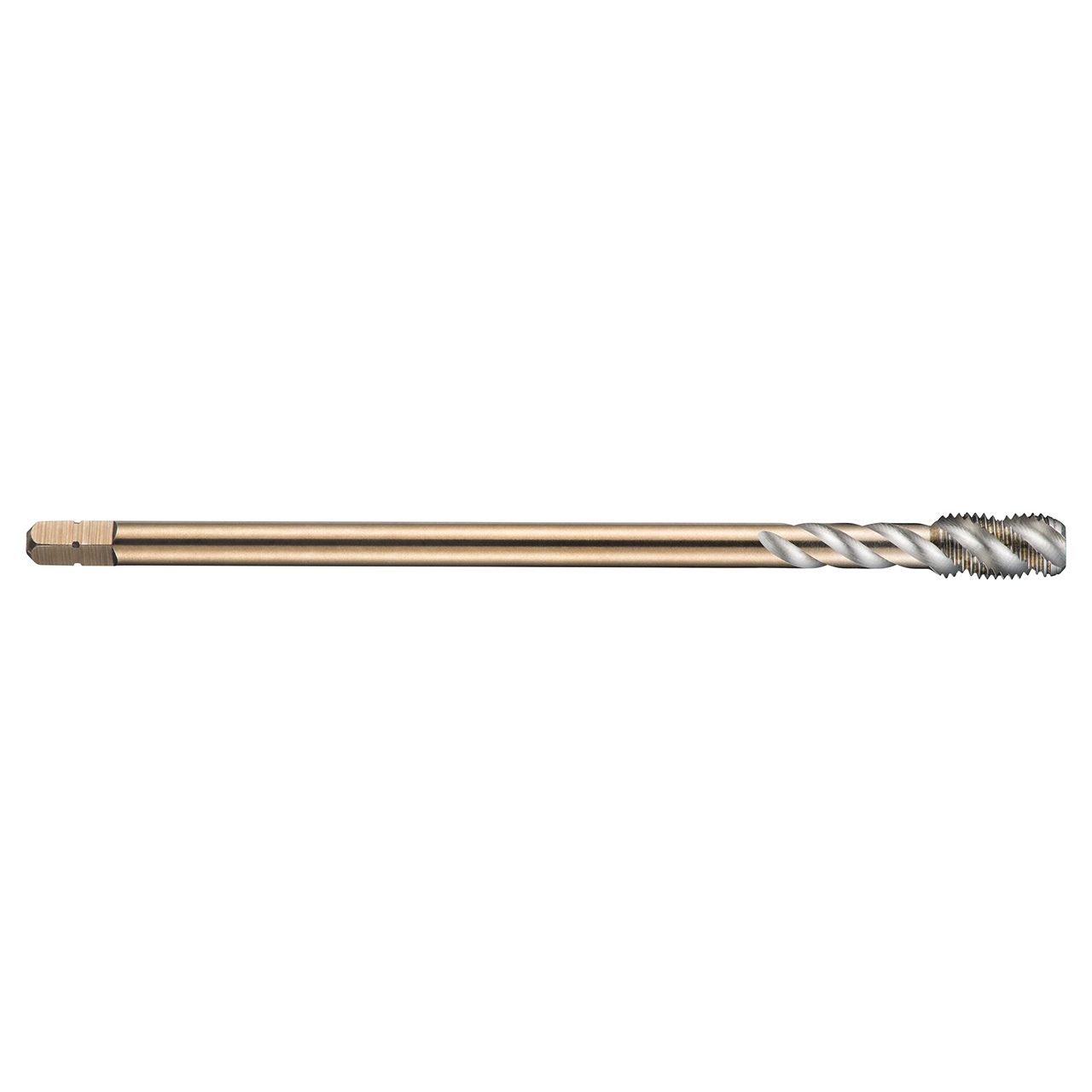

Dormer EX10M25X1.5 | 0.7087" Diameter x 5.5118" OAL 4 Flute Bright Coated Spiral Flute Tap

$248.40
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15023307
Weight:
9.42 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric Fine thread M25 with 1.50mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 18.0mm shank and 14.5mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium.


Product Specifications
Connection Diameter (Inch)0.7087"
Overall Length (Inch)5.5118"
Clamping Width (mm)14.5mm
No of Flutes4
Flute Helix Angle45
Thread Pitch (mm)1.5mm
Clamping Length17
Thread Diameter Size25
Threading Length (mm)20mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleC 2-3
Surface ColorBright Silver
Thread FormMF-Metric fine
