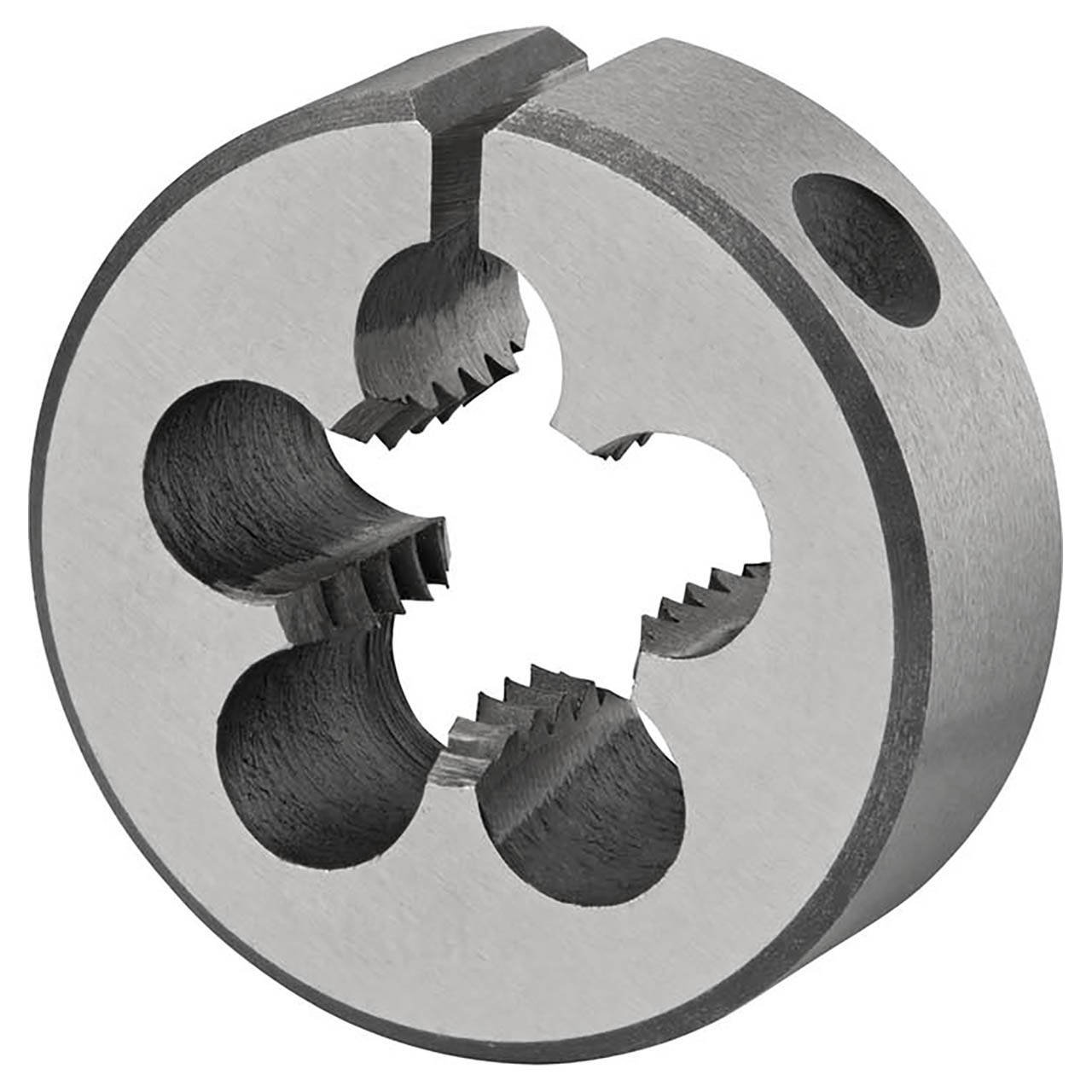

Adjustable circular split die, for British Standard Pipe thread G 1/4" with 19 TPI, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.006", dimensions according to BS 1127:1950 standard with 1.5/16" outside diameter and 7/16" thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
Product Specifications
| Body Diameter (Inch) | 1.3125" |
| Overall Length (Inch) | 0.4375" |
| Thread Diameter (mm) | 13.16mm |
| Thread Diameter Size | 1/4 |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Thread Form | G-British standard pipe fastening-G series |
