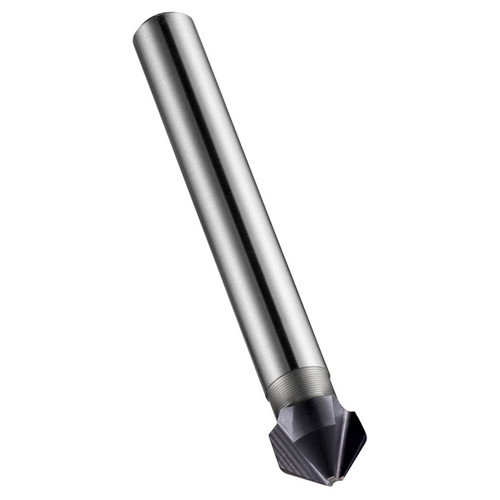

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 6.30mm with an overall length of 45mm and a head length of 5.5mm and 5mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 1.50mm, HSS with standard TiAlN coating for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys.
Product Specifications
| EDP Number | 0109694 |
| Flute Count | 3 |
| Connection Diameter (Inch) | 0.1969" |
| Overall Length (Inch) | 1.7717" |
| Point Angle | 90 |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | TiAlN |
| Surface Color | Black-Deep Purple |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Material:
HSS
Finish/Coating:
TiAlN
Number of Flutes:
3
