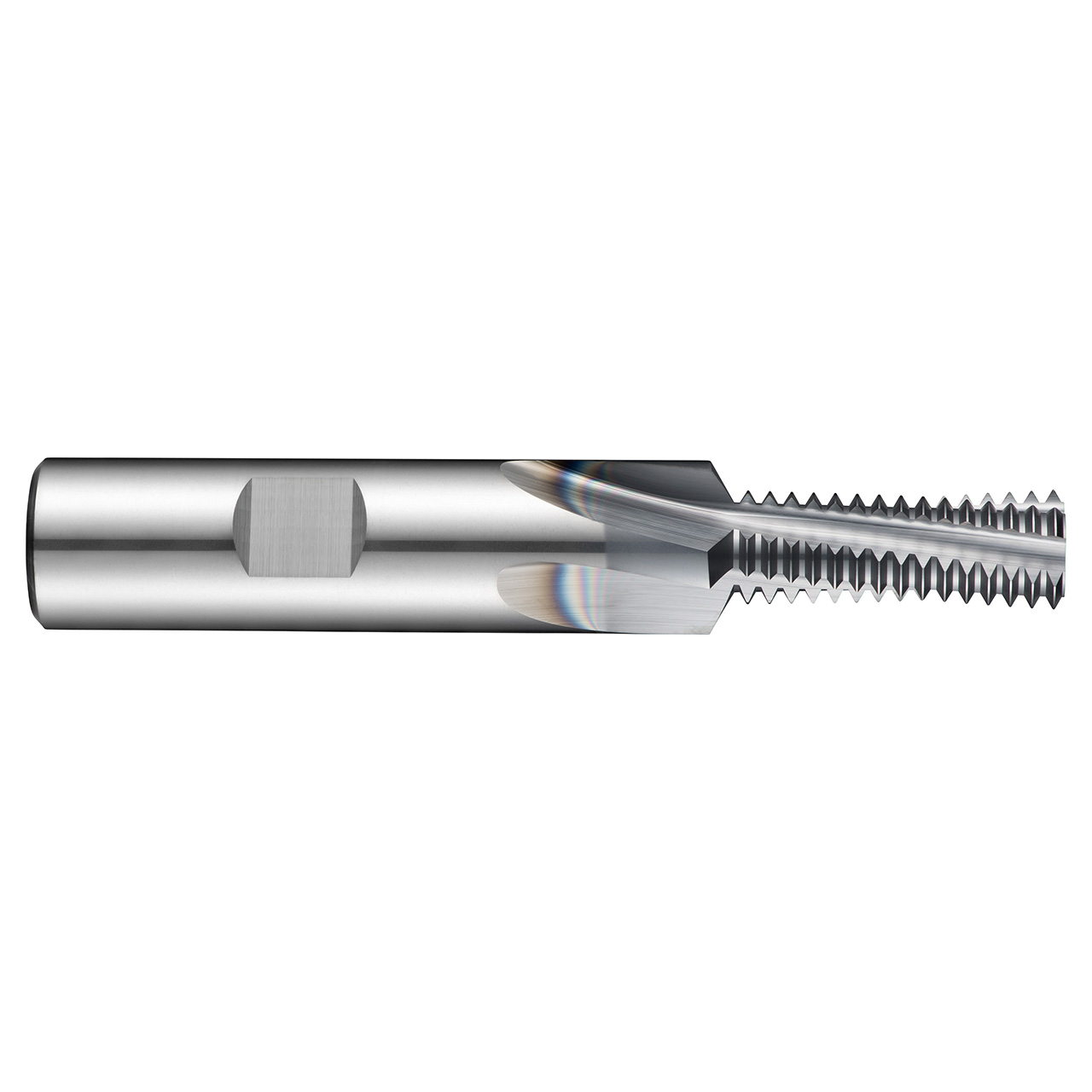

Thread and chamfer milling cutter, for ISO-Metric thread ≥ M8 with 1.25mm pitch, dimensions according to DORMER standard with 3 flutes, 6.5mm cutting diameter and 10mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10° helix angle for milling a maximum of 17.5mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals and titanium or titanium alloys.
| Connection Diameter (Inch) | 0.3937" |
| Cutting Diameter (Inch) | 0.2559" |
| Overall Length (Inch) | 2.8346" |
| Max Depth of Cut (mm) | 17.5mm |
| No of Flutes | 3 |
| Flute Helix Angle | 10 |
| Usable Length (mm) | 19.1mm |
| Thread Pitch (mm) | 1.25mm |
| Thread Diameter Size | M8 |
| Material Code | HM |
| Cutting Direction | Right Hand |
| Coating | Alcrona Pro |
| Surface Color | Black - Deep Purple |
| Thread Form | M-Metric coarse |
