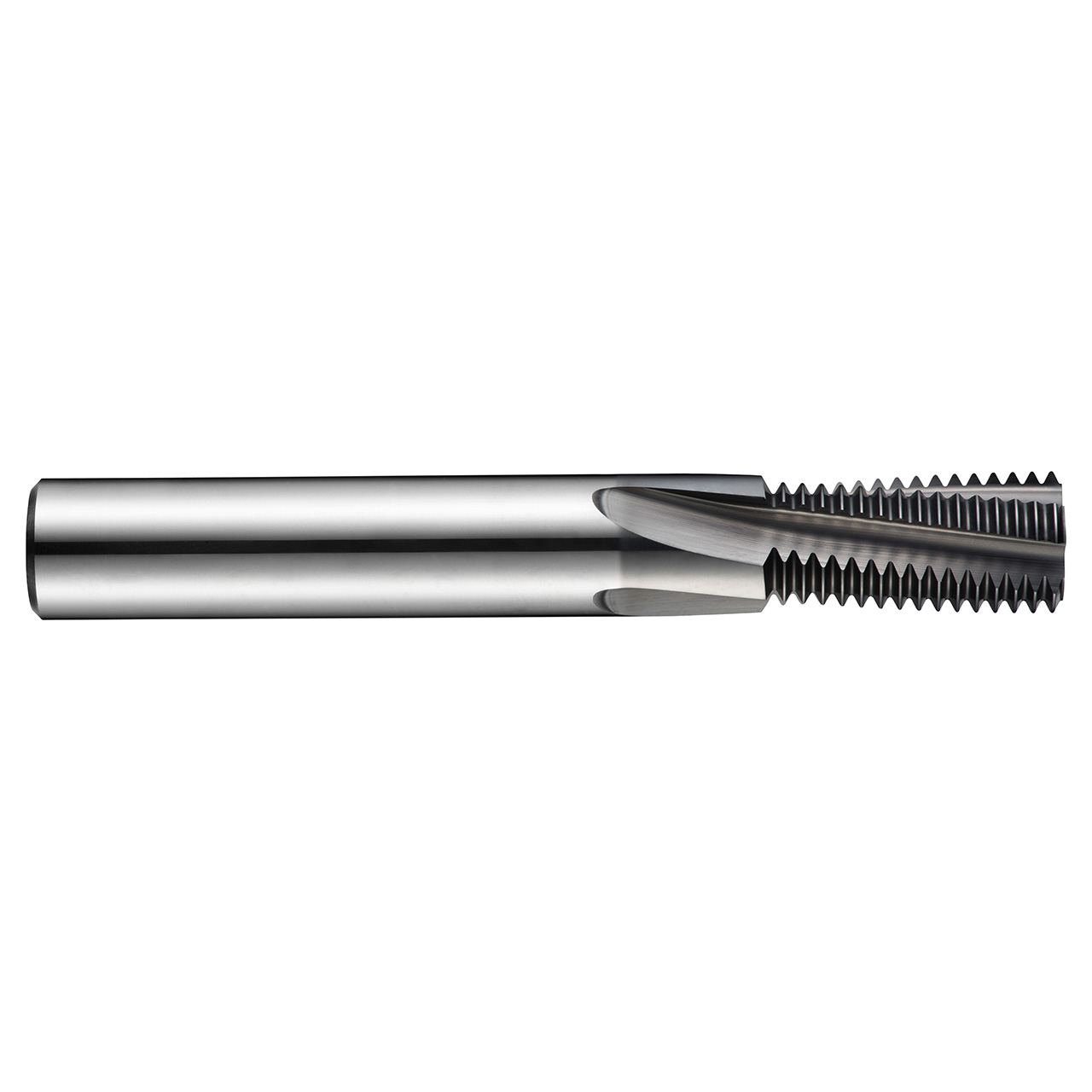

Dormer J22012.0X1.0 | 0.4724" Diameter x 3.2677" OAL 4 Flute Alcrona Pro Coated Helical Flute Thread Mill

$343.77
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026884
UPC:
7320760688922
Weight:
4.37 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Thread milling cutter, for ISO-Metric Fine thread ≥ M14 with 1.00mm pitch, dimensions according to DORMER standard with 4 flutes, 12mm cutting diameter and 12mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 22mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron.


Product Specifications
Connection Diameter (Inch)0.4724"
Cutting Diameter (Inch)0.4724"
Overall Length (Inch)3.2677"
Max Depth of Cut (mm)22mm
No of Flutes4
Flute Helix Angle10
Thread Pitch (mm)1mm
Thread Diameter SizeM14
Material CodeHM
Cutting DirectionRight Hand
CoatingAlcrona Pro
Surface ColorBlack - Deep Purple
Thread FormMF-Metric fine
