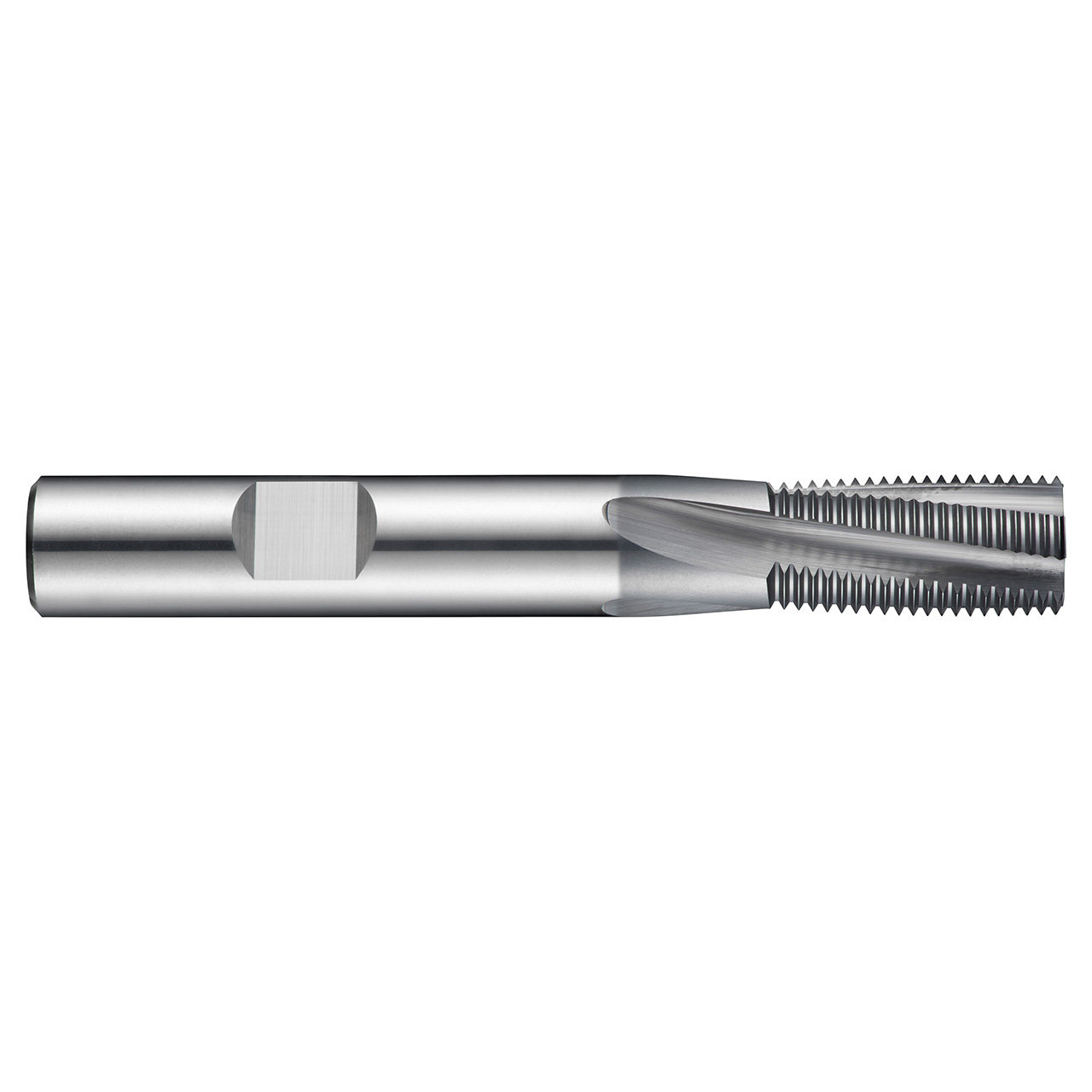

Thread milling cutter, for Unified National Fine thread ≥ UNF 9/16" with 18 TPI, dimensions according to DORMER standard with 4 flutes, 10mm cutting diameter and 10mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10 Degree helix angle for milling a maximum of 22mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron.
Product Specifications
| Connection Diameter (Inch) | 0.3937" |
| Cutting Diameter (Inch) | 0.3937" |
| Overall Length (Inch) | 2.8346" |
| Max Depth of Cut (mm) | 22mm |
| No of Flutes | 4 |
| Flute Helix Angle | 10 |
| Thread Diameter Size | 9/16, 5/8 |
| Material Code | HM |
| Cutting Direction | Right Hand |
| Coating | Alcrona Pro |
| Surface Color | Black - Deep Purple |
| Thread Form | UNF-Unified Fine |
| Country of origin | Germany |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
