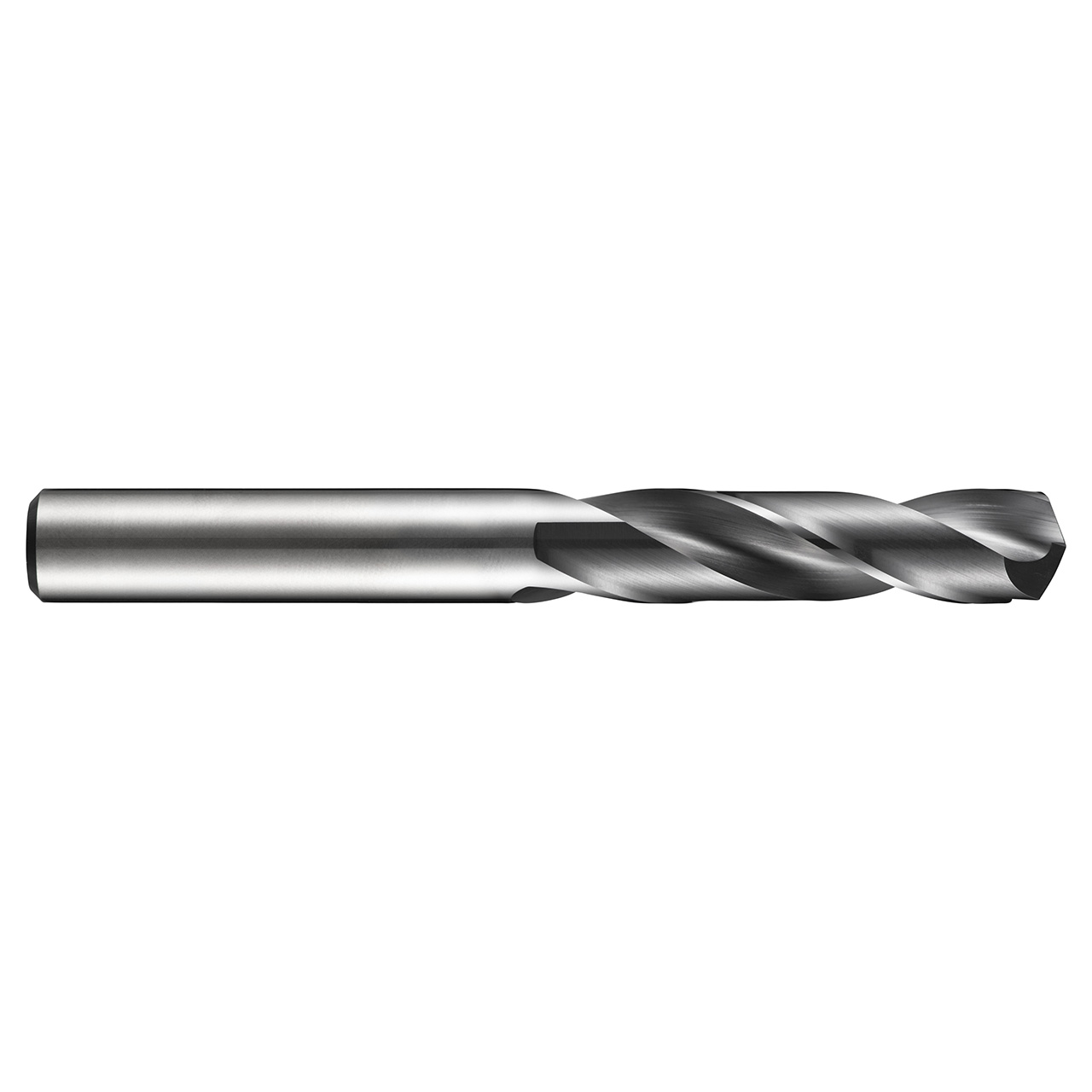

Dormer R4589.9 | 0.3898" Diameter x 3.5039" OAL TiAlN Coated Screw Machine Length Drill Bit

$94.43
Brand:
Dormer
Drill Bit Size (Inch):
25/64"
Drill Bit Size (Decimal Inch):
0.3898"
Drill Bit Size (mm):
9.9mm
Drill Point Angle:
140°
Flute Length (Inch):
1-27/32"
Flute Length (Decimal Inch):
1.8500"
Flute Length (mm):
47mm
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5039"
Overall Length (mm):
89mm
Material:
HM
Finish/Coating:
TiAlN
Cutting Direction:
Right Hand
SKU:
10110397
UPC:
7320760135150
Weight:
2.79 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

R458 Force-X drill for drilling up to three times the diameter of the drill have a 140°, 4-facet split point to reduce the push force needed to drill the hole and for assistance with self-centering. The special CTW flute design (Continuously Thinned Web) provides improved strength and means the drill can be operated at increased speeds and feeds and is capable of drilling holes of very high quality and accuracy (H9 hole tolerance), even at these higher values. R458 Force-X drills are manufactured from premium carbide so are capable of drilling a wide variety of materials including steels, stainless steels and aluminium, with a titanium aluminium nitride coating which improves tool life and gives better performance when drilling harder materials.


Product Specifications
EDP Number0135150
Usable Length3
Connection Diameter (Inch)0.3937"
Cutting Diameter (Inch)0.3898"
Overall Length (Inch)3.5039"
Shank Length (mm)40mm
Point Angle140
Material CodeHM
Drill LengthShort
Cutting DirectionRight Hand
CoatingTiAlN
Surface ColorBlack-Deep Purple
