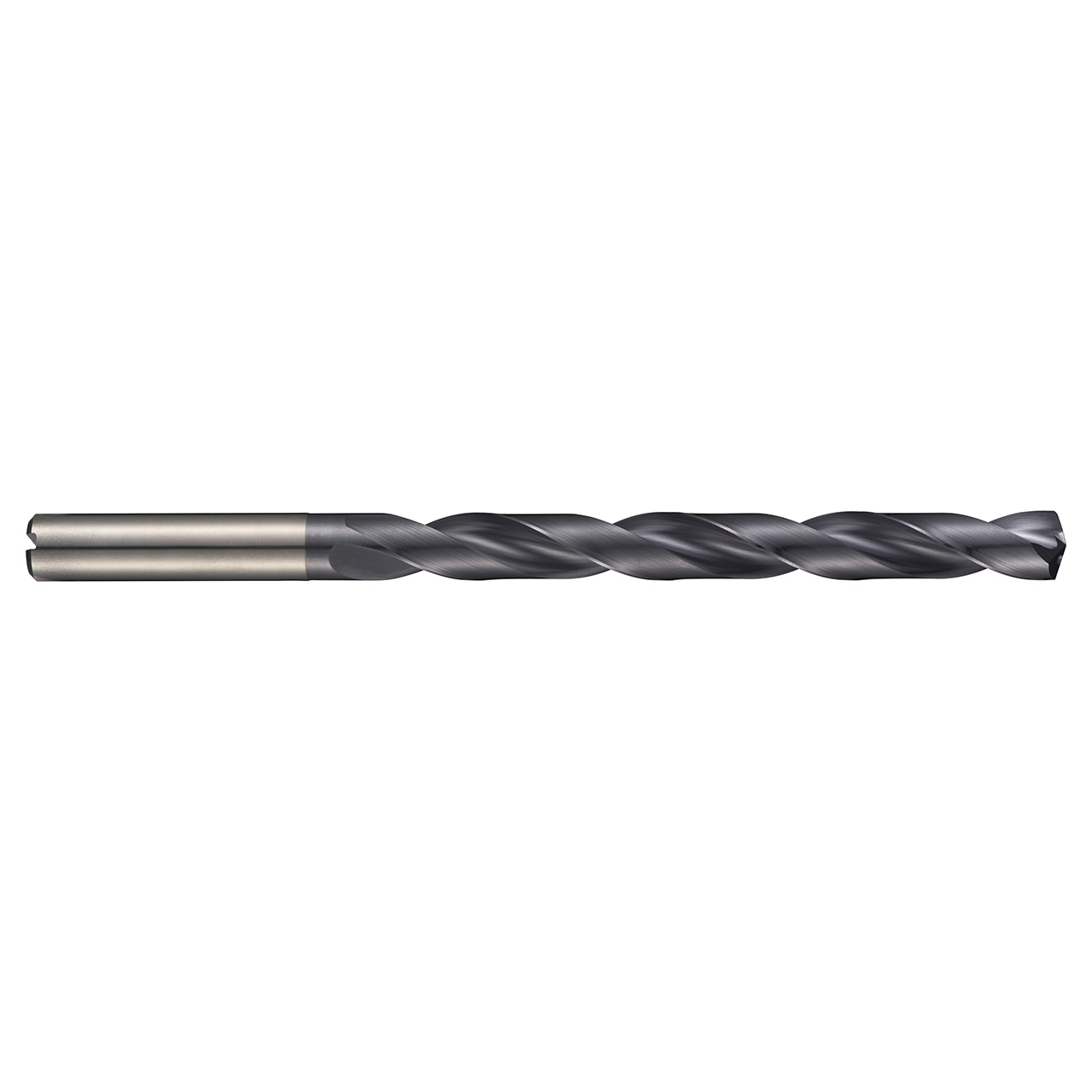

Dormer R4598.9 | 0.3504" Diameter x 5.9843" OAL TiAlN Coated Taper Length Drill Bit

$242.25
Brand:
Dormer
Drill Bit Size (Inch):
11/32"
Drill Bit Size (Decimal Inch):
0.3504"
Drill Bit Size (mm):
8.9mm
Flute Length (Inch):
4-11/64"
Flute Length (Decimal Inch):
4.1700"
Flute Length (mm):
106mm
Overall Length (Inch):
5-63/64"
Overall Length (Decimal Inch):
5.9843"
Overall Length (mm):
152mm
Drill Point Angle:
140°
Finish/Coating:
TiAlN
Material:
HM
SKU:
10113683
UPC:
7320760686638
Weight:
3.53 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

R459 carbide drills are manufactured from premium carbide and can be used for drilling many materials including steels, aluminium and stainless steels. They are high performance drills, able to produce accurate, high quality holes (H9 hole tolerance) even at higher speeds and feeds which can be achieved thanks to the special CTW flute design (Continuously Thinned Web) and coolant feed. R459 carbide drills have a 140° 4-facet, split point to help with self-centering and reduce the force needed to drill into the workpiece. The drills are coated with titanium aluminium nitride which improves tool life and enhances performance when drilling harder materials.


Product Specifications
EDP Number46719057
Usable Length8
Connection Diameter (Inch)0.3937"
Cutting Diameter (Inch)0.3504"
Overall Length (Inch)5.9843"
Shank Length (mm)40mm
Point Angle140
Material CodeHM
Drill LengthLong
Cutting DirectionRight Hand
CoatingTiAlN
Surface ColorBlack-Deep Purple
