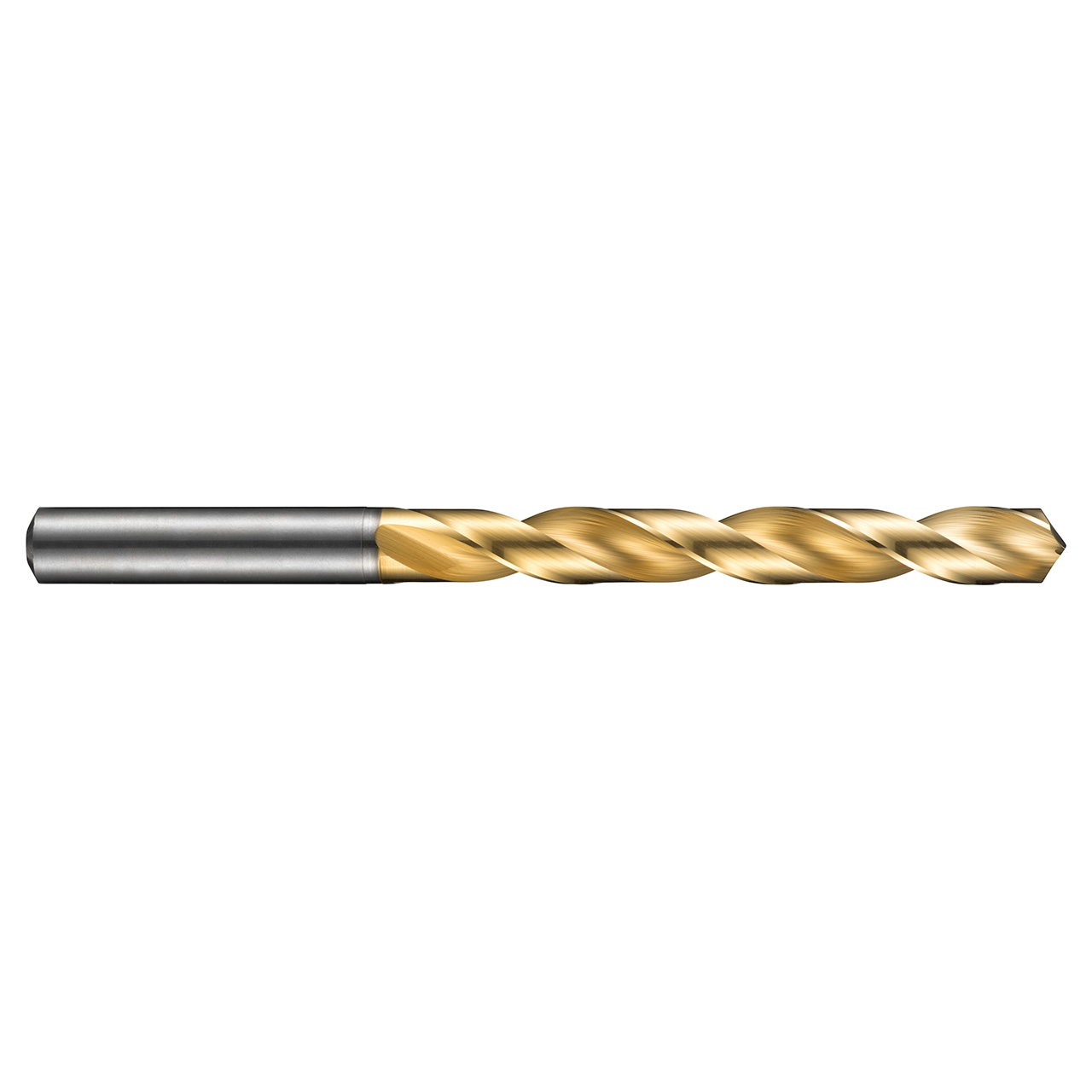

R510 ADX jobber drills from Dormer are manufactured from premium carbide and can be used for drilling a number of materials including steels, cast iron and aluminium. With a 130 Degree point to help with self-centering and reduce the push force, the drills are capable of producing high quality and accurate holes (H8 hole tolerance) even at high speeds and feeds. With a titanium nitride coating to extend the life of the drill and improve performance when drilling harder materials, R510 carbide drills have a convex cutting edge which helps break chips for easier removal, allowing increased speeds and feeds.
| EDP Number | 0115770 |
| Usable Length | 4 |
| Connection Diameter (Inch) | 0.2165" |
| Cutting Diameter (Inch) | 0.2165" |
| Overall Length (Inch) | 3.6614" |
| Point Angle | 130 |
| Material Code | HM |
| Drill Length | Jobber |
| Cutting Direction | Right Hand |
| Coating | TiN |
| Surface Color | Gold |
| Country of origin | France |
