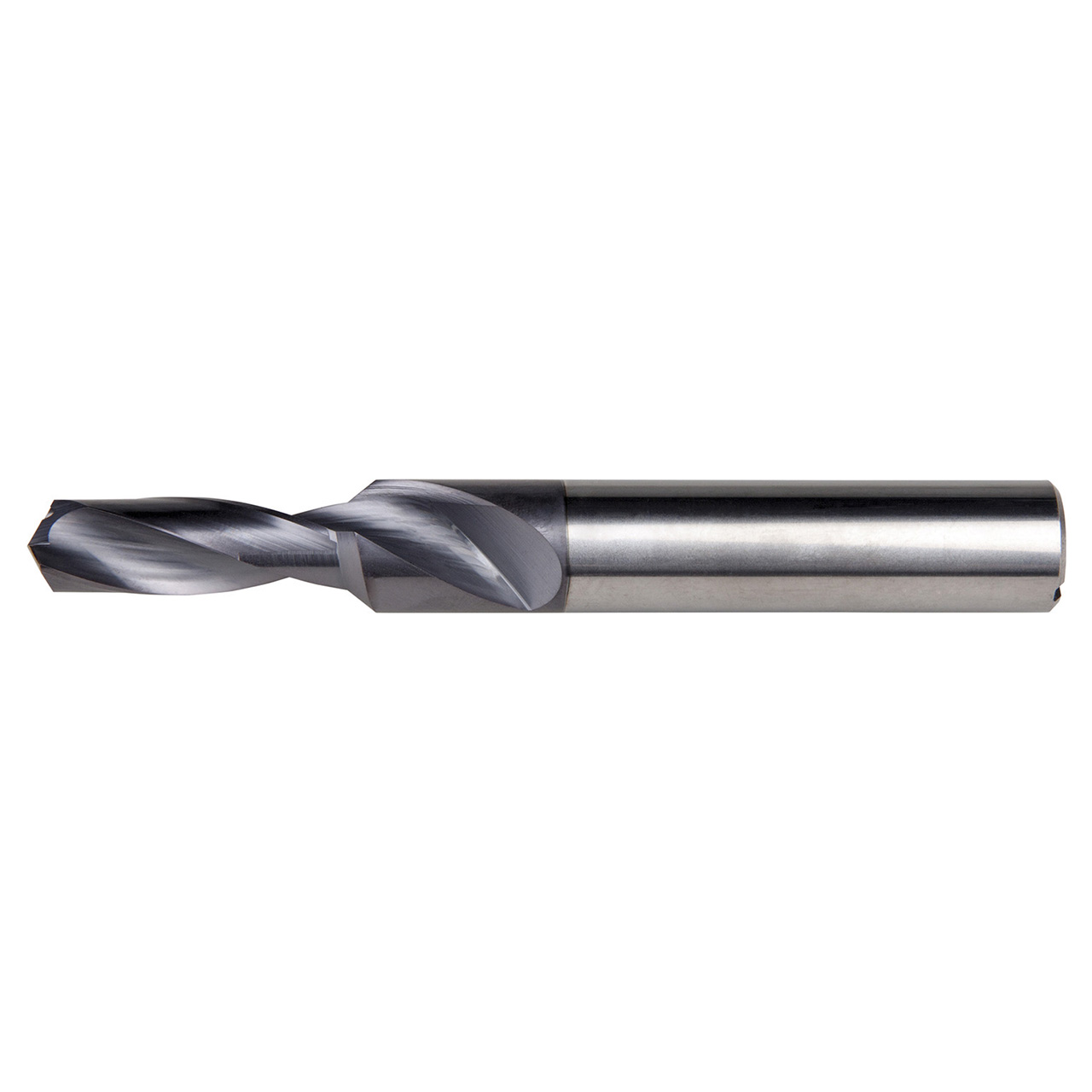

Step drill with 90 Degree included step angle, DIN 6535HA parallel shank and a drilling-pilot diameter of 4.20mm with a length of 13.60mm, a countersink diameter of maximum 6.00mm and an overall length of 66mm, according to Dormer standard to produce a thread tapping drill hole with chamfer for M5 thread, solid carbide and bright finish for machining free machining, plain carbon, alloy and tool steel, ferritic, martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel, grey, malleable, ductile, austenitic or austempered ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys.
| Usable Length | 3 |
| Connection Diameter (Inch) | 0.2362" |
| Cutting Diameter (Inch) | 0.1654" |
| Overall Length (Inch) | 2.5984" |
| Thread Diameter (mm) | M5mm |
| Point Angle | 140 |
| Material Code | HM |
| Drill Length | Short |
| Cutting Direction | Right Hand |
| Coating | TiAlN |
| Surface Color | Black-Deep Purple |
| Country of origin | Malaysia |
