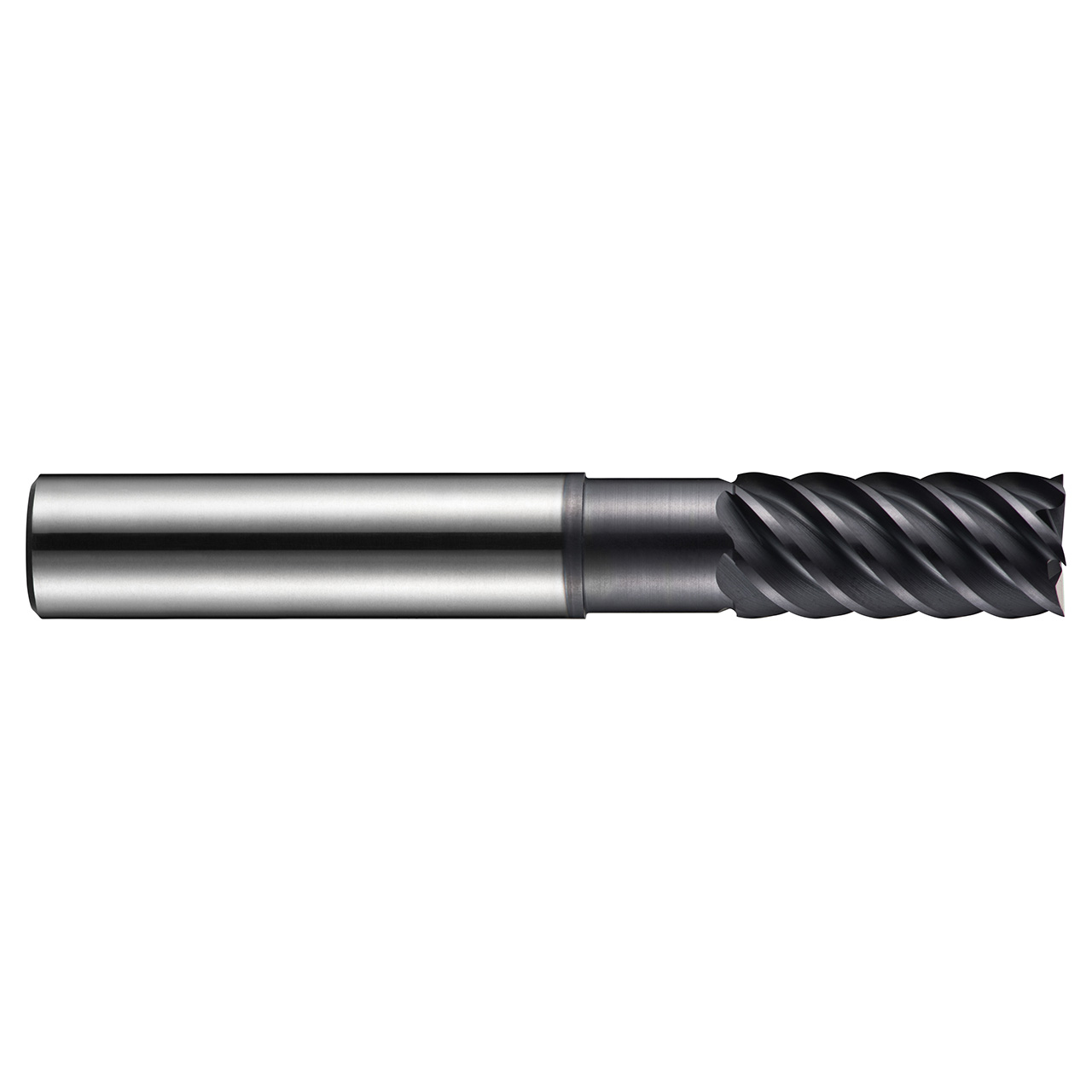

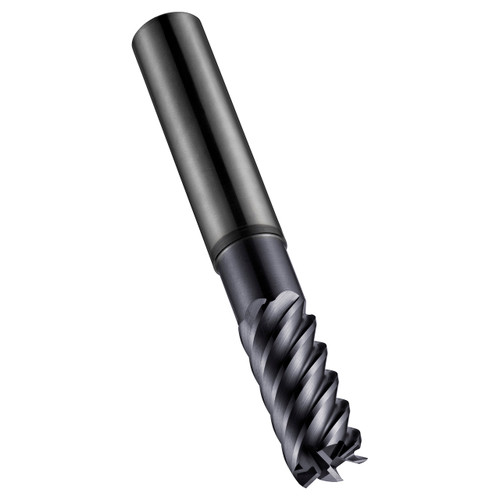

S225 multi-flute milling cutters with extra rigidity for finishing profiles are manufactured from premium carbide for great performance and longer tool life. They have an aluminium titanium nitride coating which improves performance when milling difficult to machine materials and further increases the life of the tool. S225 multi-flute milling cutters are specifically designed for finishing in difficult to machine materials such as heat resistant alloys, and have a 50 degree helix, for high performance profiling on CNC machines.
| Usable Length (mm) | 32mm |
| Max Depth of Cut (mm) | 22mm |
| Connection Diameter (Inch) | 0.3937" |
| Cutting Diameter (Inch) | 0.3937" |
| Overall Length (Inch) | 2.7559" |
| Material Code | HM |
| Radial Rake Angle | 3 |
| No of Flute | 6 |
| Flute Helix Angle | 50 |
| Coating | AlTiN |
| Surface Color | Black-Deep Purple |
