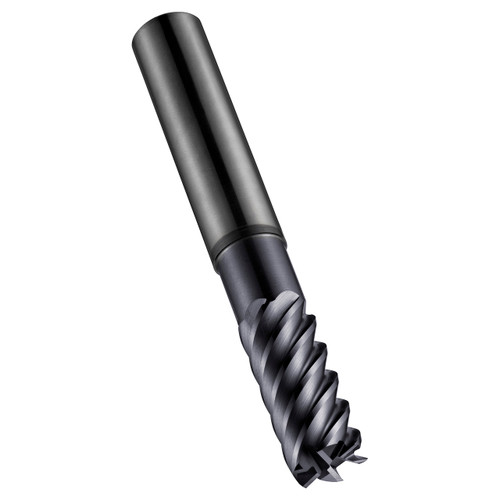

Dormer S2256.0 | 0.2362" Diameter x 1.9685" OAL 6 Flute AlTiN Coated Square End Mill

$62.40
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25141141
UPC:
7320760683507
Weight:
0.86 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

S225 multi-flute milling cutters with extra rigidity for finishing profiles are manufactured from premium carbide for great performance and longer tool life. They have an aluminium titanium nitride coating which improves performance when milling difficult to machine materials and further increases the life of the tool. S225 multi-flute milling cutters are specifically designed for finishing in difficult to machine materials such as heat resistant alloys, and have a 50 degree helix, for high performance profiling on CNC machines.


Product Specifications
Usable Length (mm)20mm
Max Depth of Cut (mm)15mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.2362"
Overall Length (Inch)1.9685"
Material CodeHM
Radial Rake Angle3
No of Flute6
Flute Helix Angle50
CoatingAlTiN
Surface ColorBlack-Deep Purple
