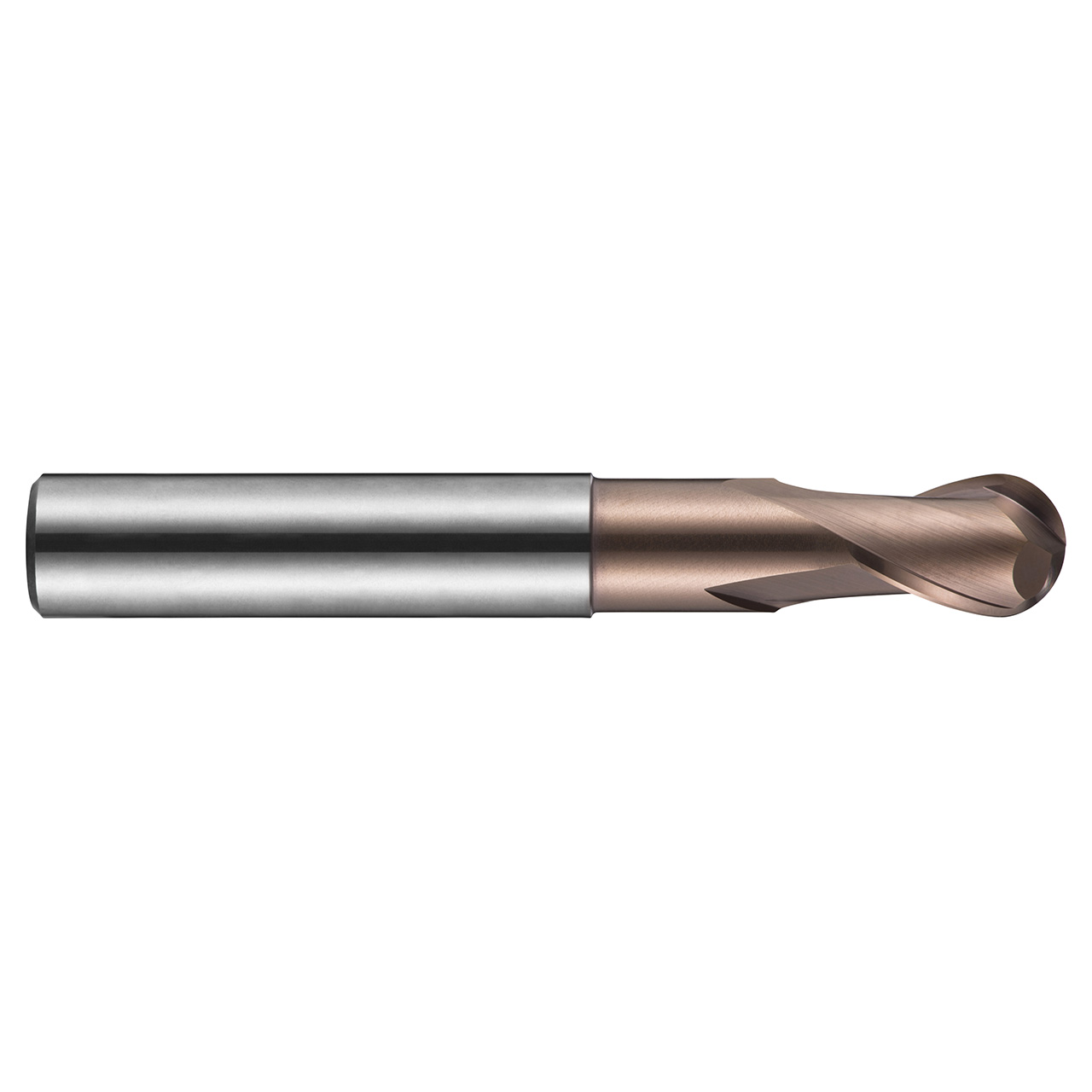

Dormer S2292.0XD4 | 0.0787" Diameter x 1.9685" OAL 2 Flute TiSiN Coated Ball End Mill

$56.46
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25140860
UPC:
7320760680667
Weight:
0.53 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

S229 2-flute milling cutters have a ball nose geometry for high performance contouring of complex surfaces and are designed particularly for high speed machining in difficult to machine materials such as heat resistant alloys, whilst the short 2-flute design gives greater rigidity for increased strength and reduced vibration. With an aluminium titanium nitride coating which prolongs tool life and improves performance when milling difficult to machine materials, S229 2-flute milling cutters are manufactured from premium carbide material to further improve performance and extend tool life, and are designed for high speed machining of heat resistant alloys and other hard to machine materials.


Product Specifications
Usable Length (mm)8mm
Max Depth of Cut (mm)4mm
Connection Diameter (Inch)0.1575"
Cutting Diameter (Inch)0.0787"
Overall Length (Inch)1.9685"
Material CodeHM
Radial Rake Angle3
No of Flute2
Flute Helix Angle30
Corner Radius (mm)1mm
CoatingTiSiN
Surface ColorRose Gold
