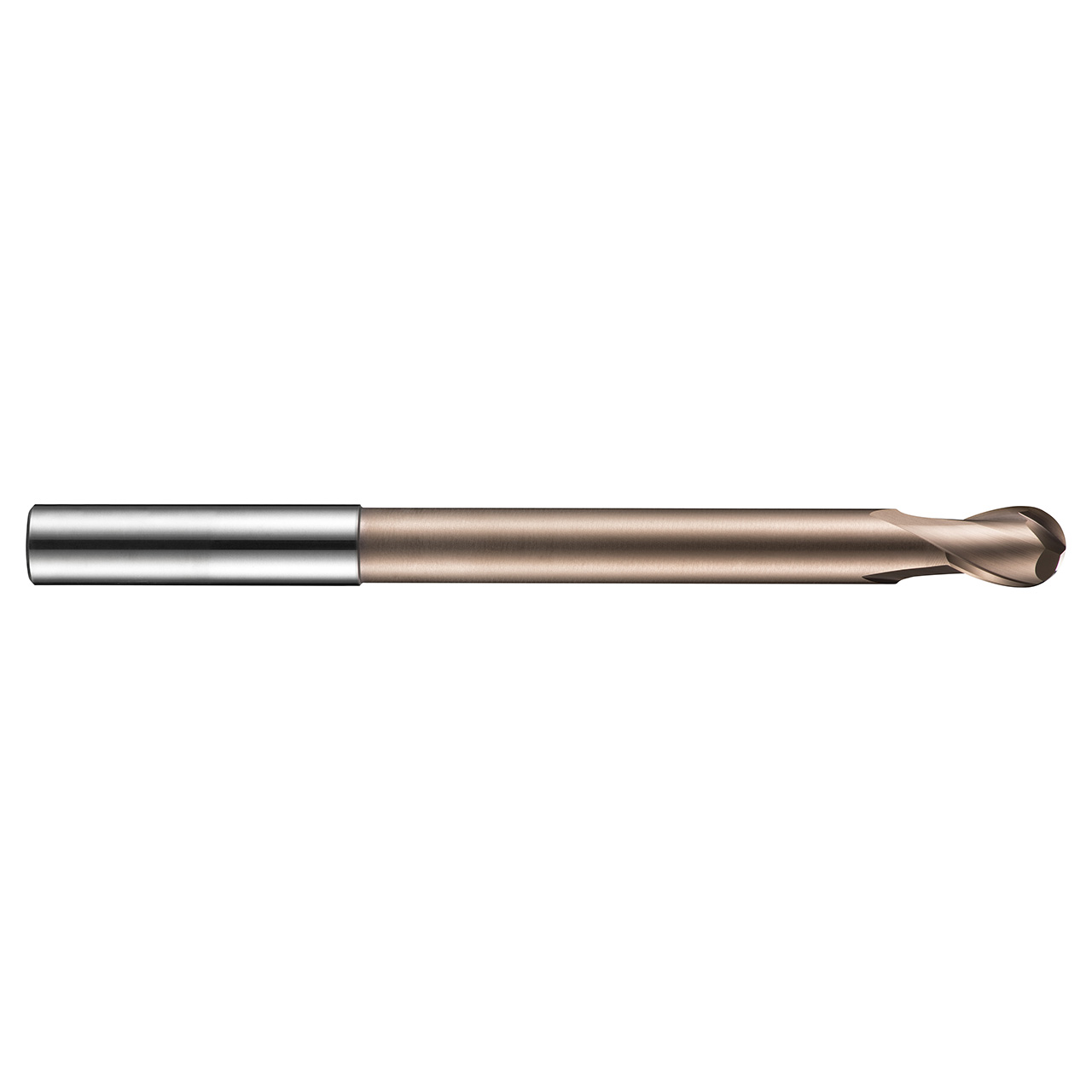

Dormer S2333.0XD6 | 0.1181" Diameter x 3.937" OAL 2 Flute TiSiN Coated Ball End Mill

$76.20
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25140898
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

S233 2-flute milling cutters have a ball nose geometry for high performance contouring of complex surfaces and a titanium silicon nitride coating which improves performance when milling difficult to machine materials and also increase the life of the tool. Manufactured from premium carbide for superior performance and further enhancement to tool life, S233 cutters are specifically for high speed machining in difficult to machine materials such as heat resistant alloys, and have an extra long reach 2-flute design which provides good rigidity for increased strength and reduced vibration in difficult to reach areas.


Product Specifications
Usable Length (mm)30mm
Max Depth of Cut (mm)5mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.1181"
Overall Length (Inch)3.937"
Material CodeHM
Radial Rake Angle3
No of Flute2
Flute Helix Angle30
Corner Radius (mm)1.5mm
CoatingTiSiN
Surface ColorRose Gold
