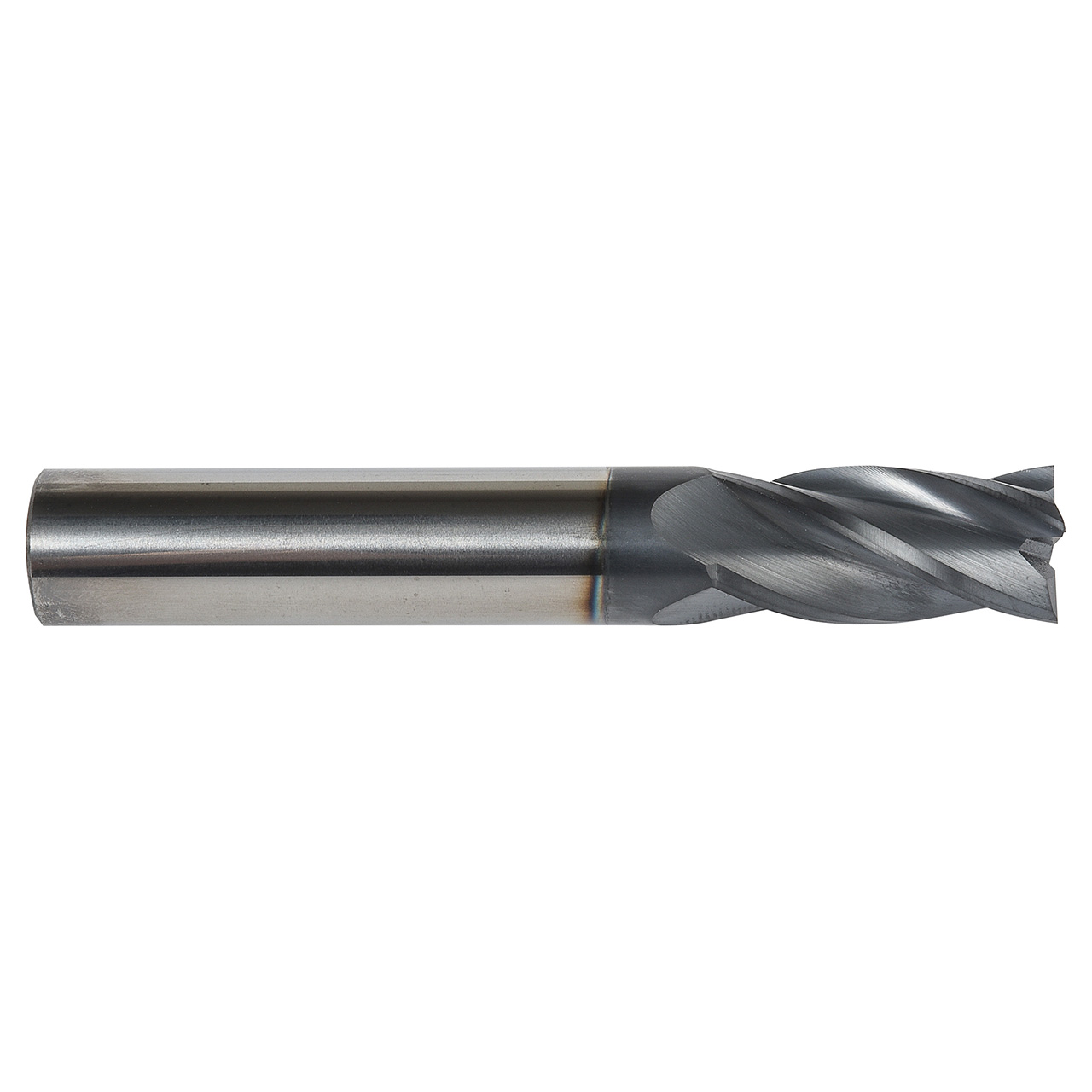

S235 4-flute milling cutters are a good, economical range for general milling of slots on most types of machines and have a medium length flute providing good rigidity for standard profile milling. A great result is assured thanks to the aluminium titanium nitride coating which stops workpiece material from sticking to the cutting surfaces. The premium carbide used in manufacture provides extended tool life and great performance, and the tools can be used for plunging, ramping and profile milling in steel, stainless steels and cast irons.
Max Depth of Cut (mm) | 22mm |
Connection Diameter (Inch) | 0.3937" |
Cutting Diameter (Inch) | 0.3937" |
Overall Length (Inch) | 2.7559" |
Material Code | HM |
No of Flute | 4 |
Flute Helix Angle | 30 |
Coating | TiAlN |
Surface Color | Black-Deep Purple |
