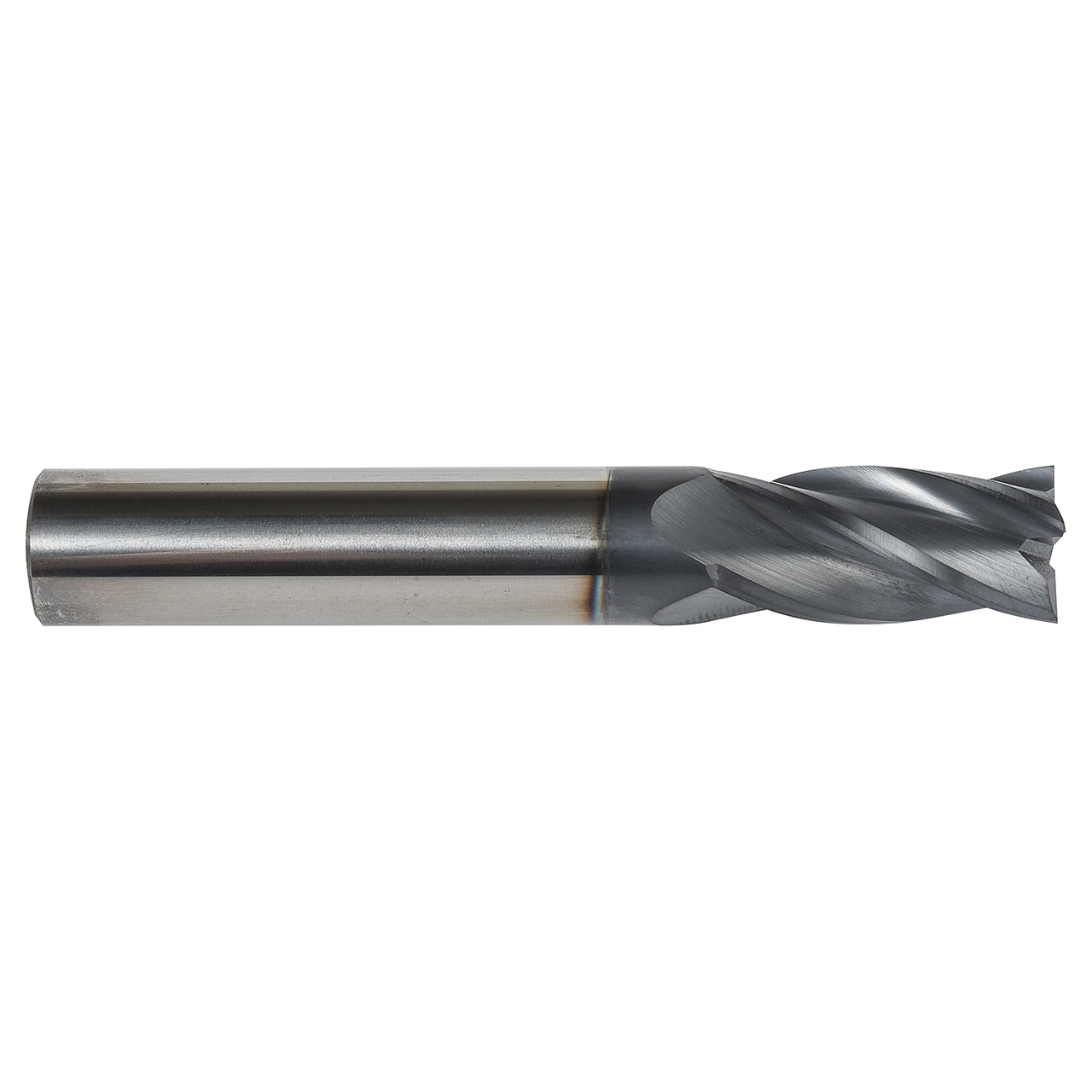

Dormer S2354.0 | 0.1575" Diameter x 1.9685" OAL 4 Flute TiAlN Coated Square End Mill

$20.19
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25140663
Weight:
0.39 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

S235 4-flute milling cutters are a good, economical range for general milling of slots on most types of machines and have a medium length flute providing good rigidity for standard profile milling. A great result is assured thanks to the aluminium titanium nitride coating which stops workpiece material from sticking to the cutting surfaces. The premium carbide used in manufacture provides extended tool life and great performance, and the tools can be used for plunging, ramping and profile milling in steel, stainless steels and cast irons.


Product Specifications
Max Depth of Cut (mm)14mm
Connection Diameter (Inch)0.1575"
Cutting Diameter (Inch)0.1575"
Overall Length (Inch)1.9685"
Material CodeHM
No of Flute4
Flute Helix Angle30
CoatingTiAlN
Surface ColorBlack-Deep Purple
