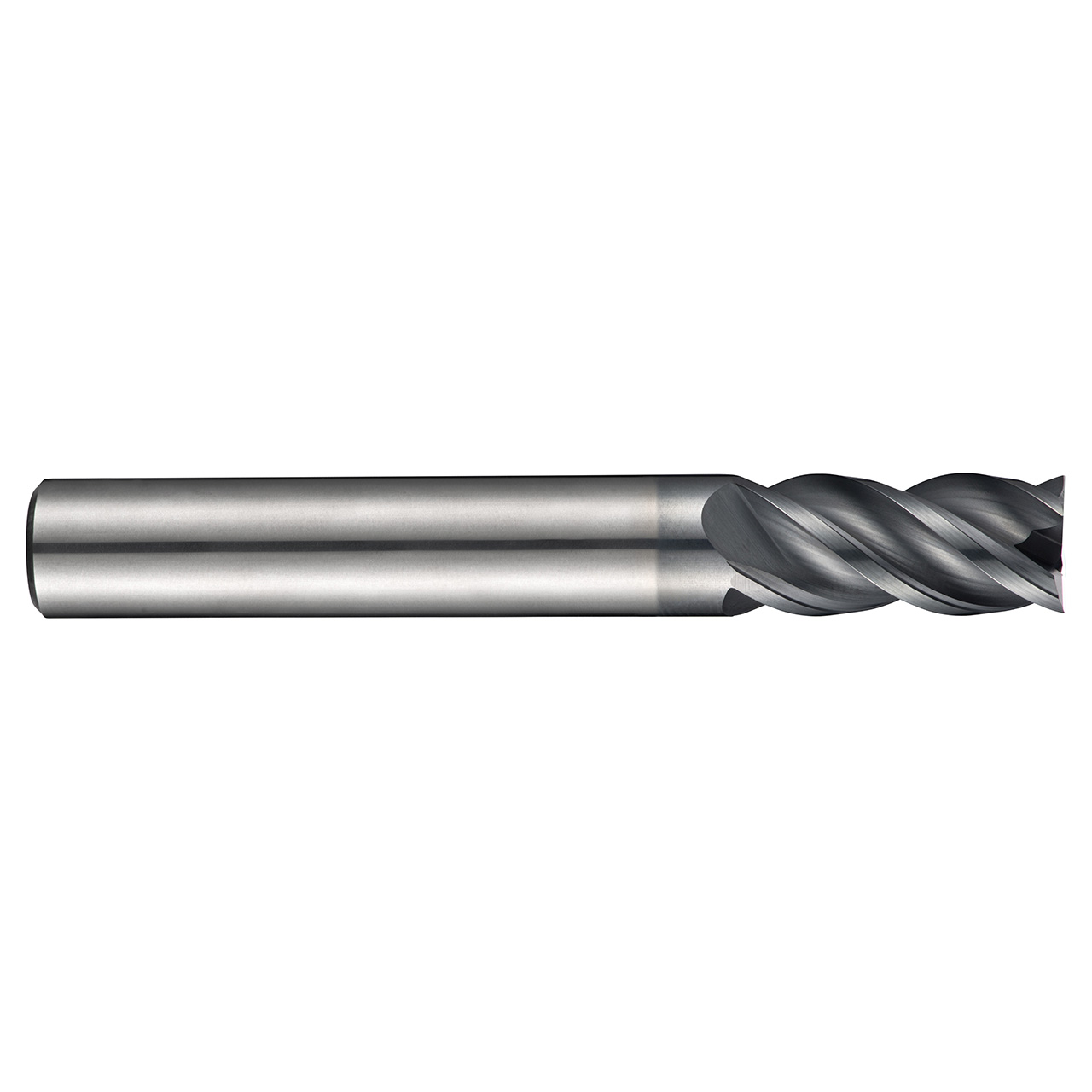

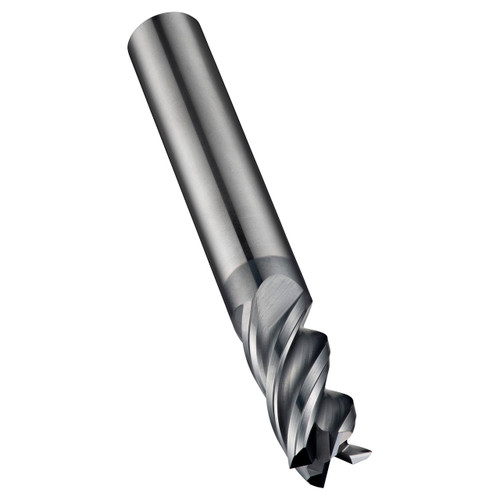

Dormer S2606.0 | 0.2362" Diameter x 2.2441" OAL 4 Flute AlCrN Coated Square End Mill

$54.12
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25141243
UPC:
7320760684658
Weight:
0.95 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

S260 4-flute milling cutters have a 40 degree helix with an unequal flute divide which reduces vibration and improves surface finish when used in CNC machines. These application milling cutters have been designed specifically for milling heat resistant alloys and other difficult to machine materials, with a medium flute length for high rigidity for standard profile milling. S260 milling cutters are manufactured from premium carbide for great performance and a longer tool life. The aluminium chrome nitride coating further increases tool life and also improves performance when milling difficult to machine materials.


Product Specifications
Max Depth of Cut (mm)13mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.2362"
Overall Length (Inch)2.2441"
Material CodeHM
Radial Rake Angle4
No of Flute4
Flute Helix Angle40
CoatingAlCrN
Surface ColorBlack-Deep Purple

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
