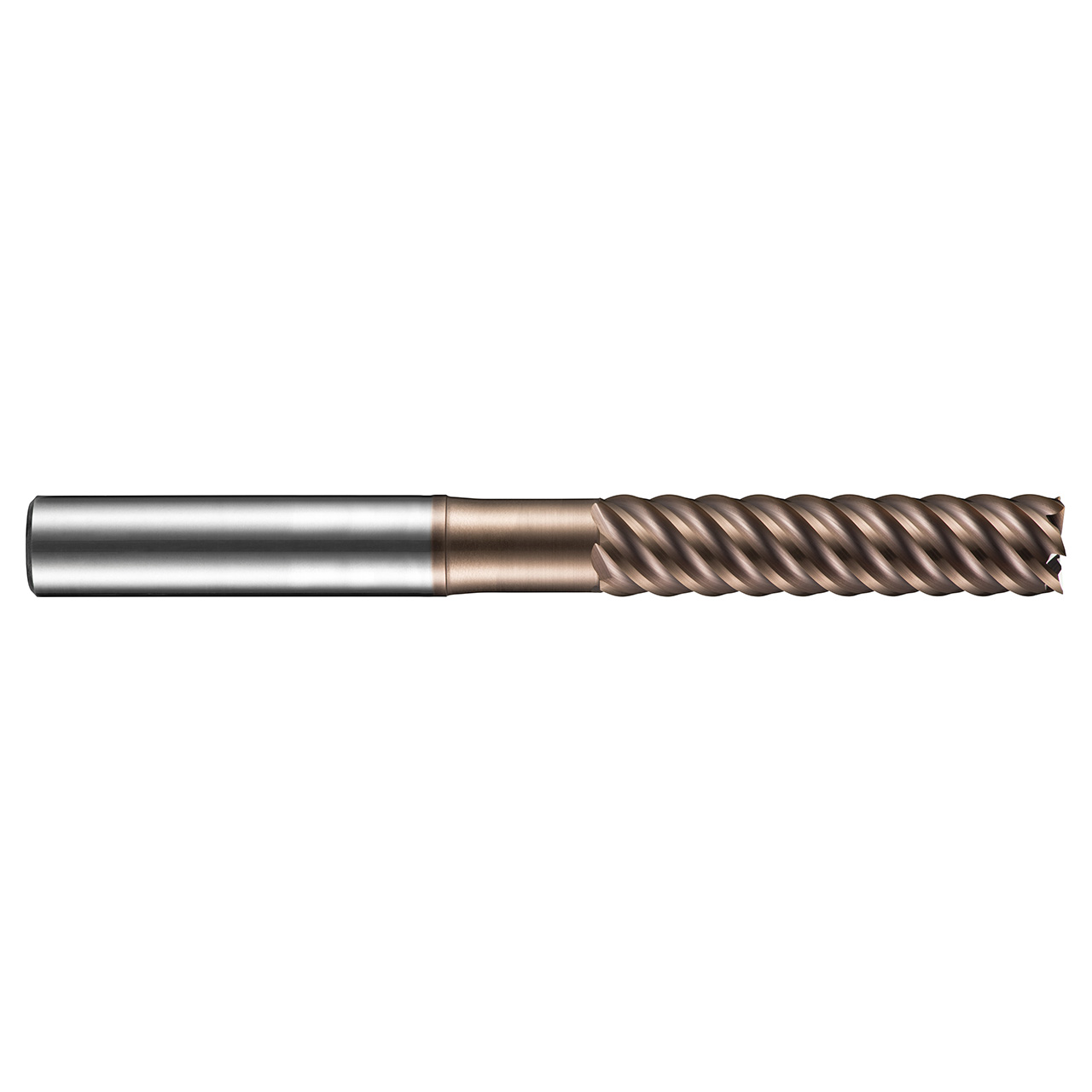

Dormer's S526 milling cutters are manufactured from premium carbide for great performance and a long tool life. They are designed specifically for finishing in hardened tool steels up to 63HRC and have a titanium silicon nitride coating which further increases tool life and improves performance when milling difficult to machine materials. The 50 degree helix makes the tools ideal for high performance profiling on CNC machines, whilst the long series multi-flute feature on S526 cutters provides extra rigidity.
| Usable Length (mm) | 60mm |
| Max Depth of Cut (mm) | 45mm |
| Connection Diameter (Inch) | 0.3937" |
| Cutting Diameter (Inch) | 0.3937" |
| Overall Length (Inch) | 3.937" |
| Material Code | HM |
| Radial Rake Angle | -26 |
| No of Flute | 6 |
| Flute Helix Angle | 50 |
| Coating | TiSiN |
| Surface Color | Rose Gold |
