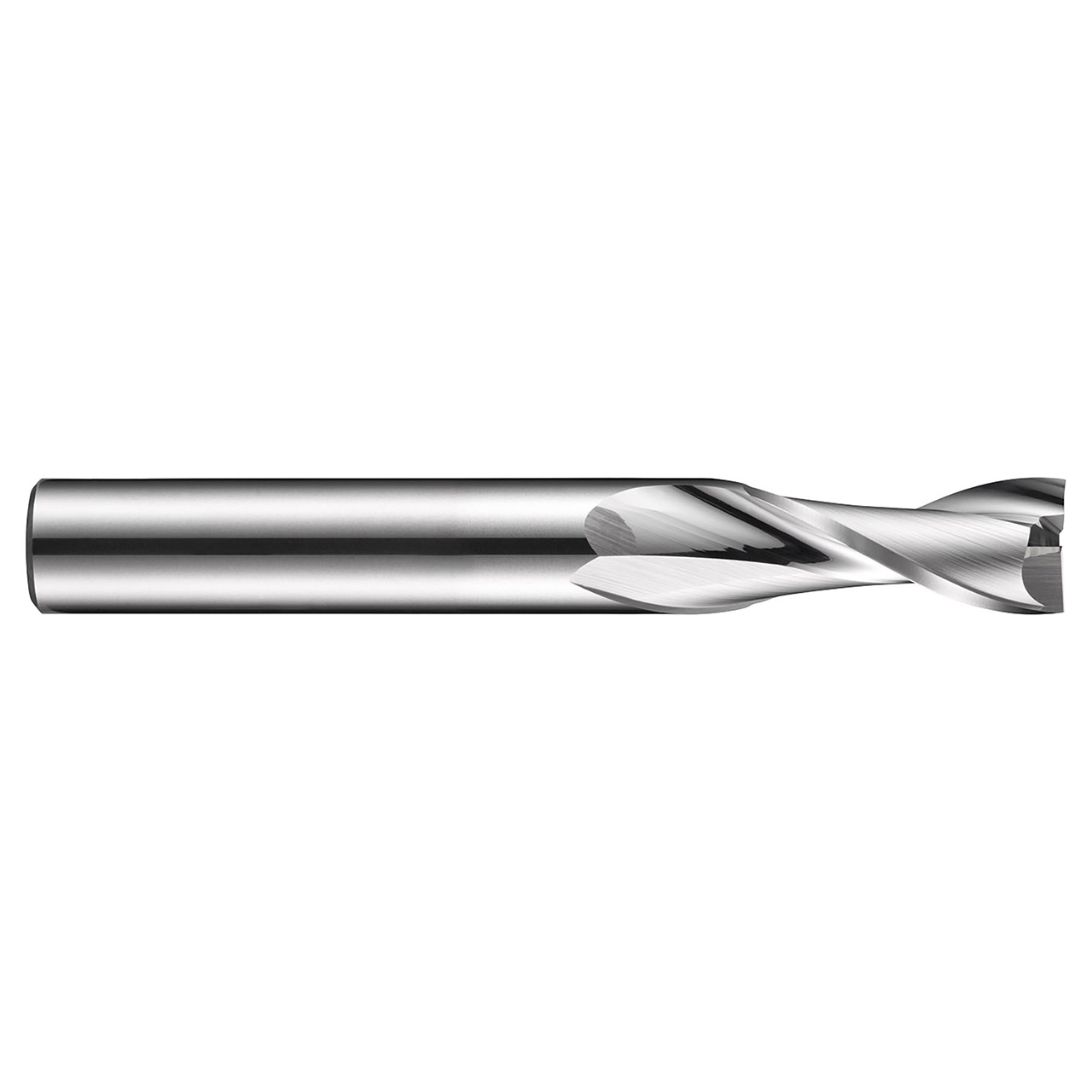

S610 2-flute slot drills have a bright polished finish which stops workpiece material from sticking to the cutting edges of the tool so you get a clean and accurate finish, whilst the premium carbide used in manufacture ensures you get great performance and a long tool life. The tools have a medium length flute design which will provide high rigidity for milling standard slots and profiling. S610 2-flute carbide slot drills are application products, specifically for milling in non-ferrous materials such as aluminium, and have a high hook geometry for high performance machining in soft materials.
| Max Depth of Cut (mm) | 25mm |
| Connection Diameter (Inch) | 0.4724" |
| Cutting Diameter (Inch) | 0.4724" |
| Overall Length (Inch) | 2.9528" |
| Material Code | HM |
| Radial Rake Angle | 20 |
| No of Flute | 2 |
| Flute Helix Angle | 30 |
| Corner Radius (mm) | 0.1mm |
| Coating | Polished |
| Surface Color | Chrome |
| Country of origin | Malaysia |
