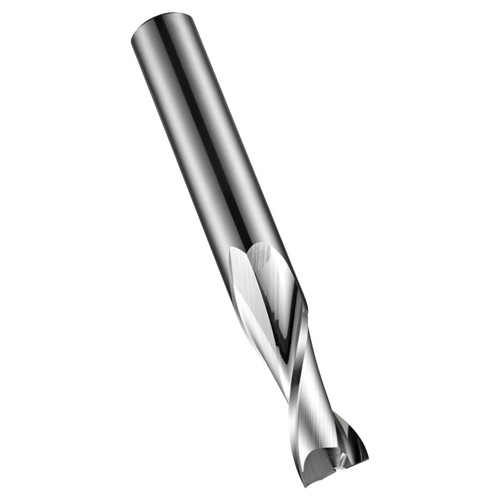

Dormer S6104.0XD6 | 0.1575" Diameter x 1.9685" OAL 2 Flute Polished Coated Square End Mill

$47.34
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25140936
Weight:
0.88 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

S610 2-flute slot drills have a bright polished finish which stops workpiece material from sticking to the cutting edges of the tool so you get a clean and accurate finish, whilst the premium carbide used in manufacture ensures you get great performance and a long tool life. The tools have a medium length flute design which will provide high rigidity for milling standard slots and profiling. S610 2-flute carbide slot drills are application products, specifically for milling in non-ferrous materials such as aluminium, and have a high hook geometry for high performance machining in soft materials.


Product Specifications
Max Depth of Cut (mm)12mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.1575"
Overall Length (Inch)1.9685"
Material CodeHM
Radial Rake Angle20
No of Flute2
Flute Helix Angle30
Corner Radius (mm)0.1mm
CoatingPolished
Surface ColorChrome
