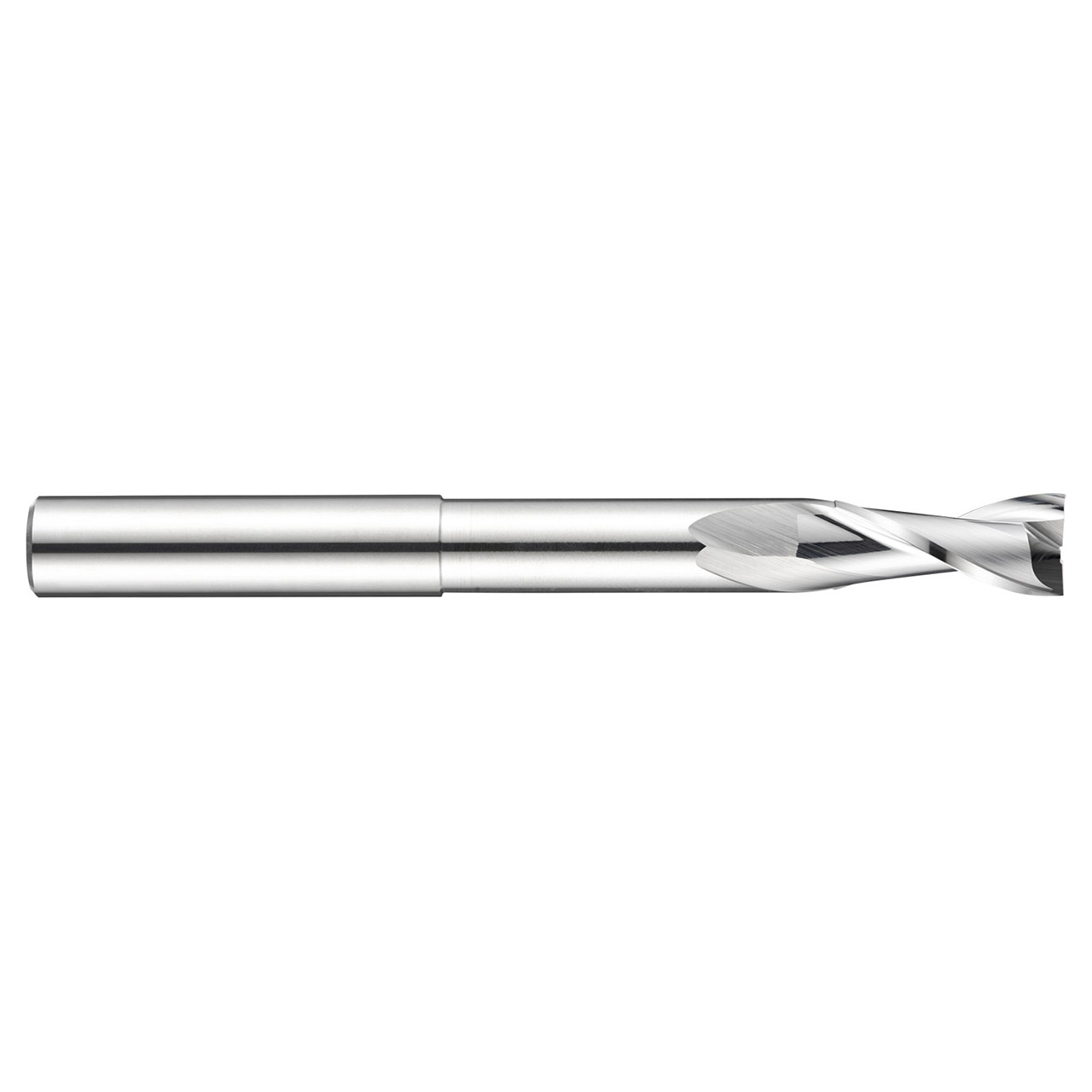

Dormer's range of carbide milling cutters includes S611 2-flute slot drills, with a long reach flute design, providing high rigidity for milling and profiling in hard to reach areas. Manufactured from premium carbide, you will get great performance and a long tool life, whilst the bright polished finish will make sure you get a clean and accurate result by preventing workpiece material from sticking to the cutting edges of the tools. S611 2-flute carbide slot drills have a high hook geometry for high performance machining in soft materials and the design means these tools are specifically for milling in non-ferrous materials such as aluminium.
Usable Length (mm) | 75mm |
Max Depth of Cut (mm) | 32mm |
Connection Diameter (Inch) | 0.5512" |
Cutting Diameter (Inch) | 0.5512" |
Overall Length (Inch) | 4.9213" |
Material Code | HM |
Radial Rake Angle | 20 |
No of Flute | 2 |
Flute Helix Angle | 30 |
Corner Radius (mm) | 0.1mm |
Coating | Polished |
Surface Color | Chrome |
