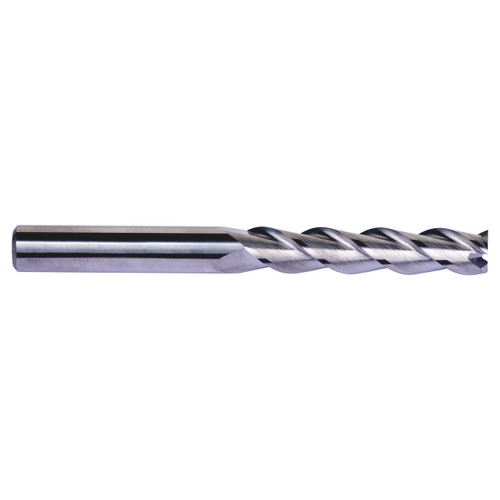

Part of Dormer's extensive range of milling cutters, S614 long series 3-flute cutters enable deeper walls and pockets to be machined. The three flute design improves metal removal rate at higher cutting speeds whilst the positive geometry gives you smooth cutting action, great for high performance on non-ferrous materials. S614 milling cutters come with a specific design, capable of contouring walls with high accuracy, and will give clean and accurate results, thanks to the bright finish which reduces friction and prevents workpiece material from sticking to the cutting edges of the tool.
Max Depth of Cut (mm) | 50mm |
Connection Diameter (Inch) | 0.4724" |
Cutting Diameter (Inch) | 0.4724" |
Overall Length (Inch) | 3.937" |
Material Code | HM |
Radial Rake Angle | 13 |
No of Flute | 3 |
Flute Helix Angle | 40 |
Coating | Bright |
Surface Color | Bright Silver |
