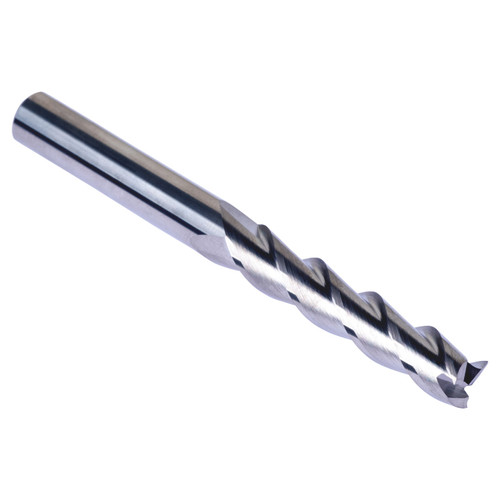

Dormer S6148.0 | 0.315" Diameter x 3.937" OAL 3 Flute Bright Coated Square End Mill

$67.80
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25211935
Weight:
2.44 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Part of Dormer's extensive range of milling cutters, S614 long series 3-flute cutters enable deeper walls and pockets to be machined. The three flute design improves metal removal rate at higher cutting speeds whilst the positive geometry gives you smooth cutting action, great for high performance on non-ferrous materials. S614 milling cutters come with a specific design, capable of contouring walls with high accuracy, and will give clean and accurate results, thanks to the bright finish which reduces friction and prevents workpiece material from sticking to the cutting edges of the tool.


Product Specifications
Max Depth of Cut (mm)41mm
Connection Diameter (Inch)0.315"
Cutting Diameter (Inch)0.315"
Overall Length (Inch)3.937"
Material CodeHM
Radial Rake Angle13
No of Flute3
Flute Helix Angle40
CoatingBright
Surface ColorBright Silver
