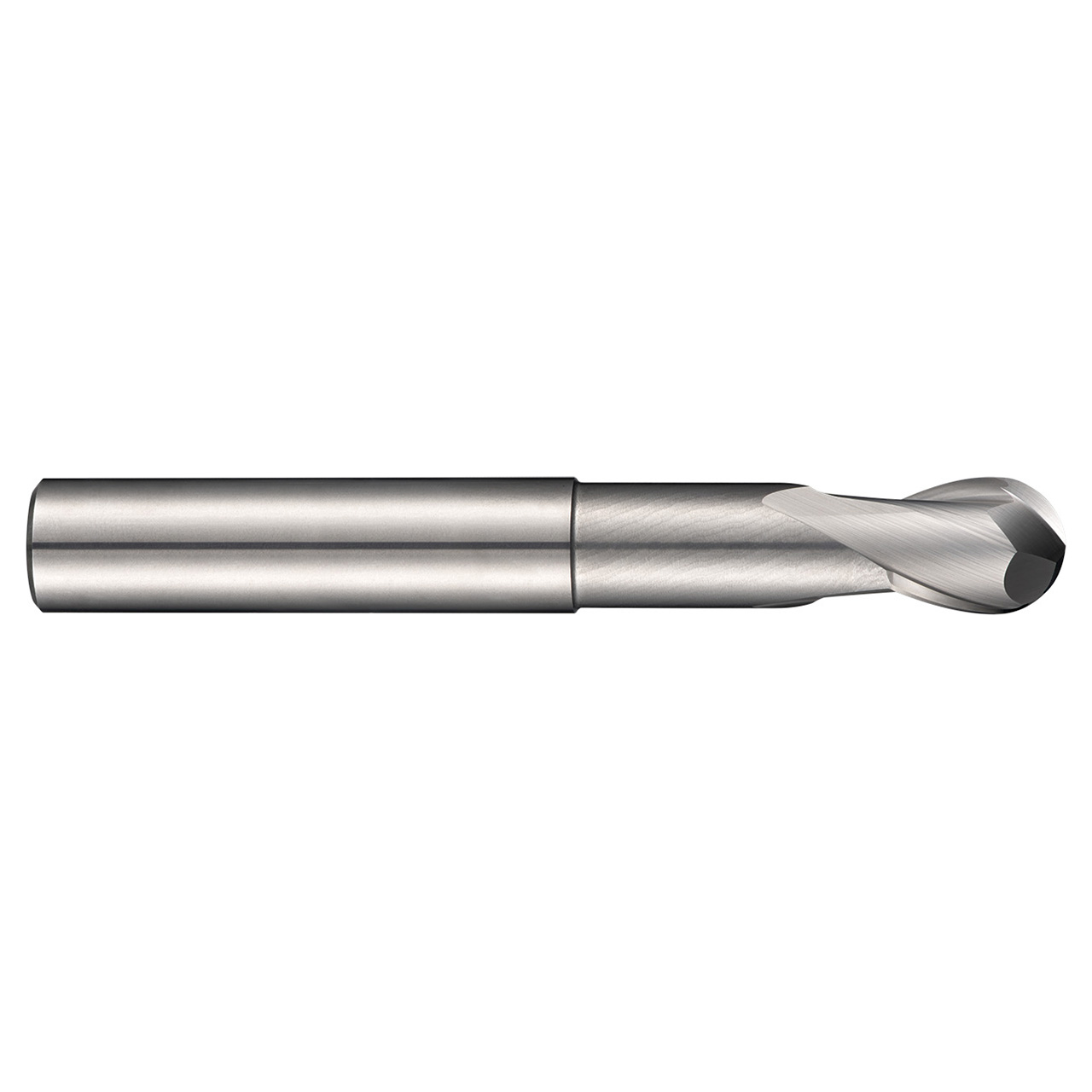

S629 2-flute milling cutters from Dormer are manufactured from premium carbide with superior performance and extended tool life. The bright polished finish prevents workpiece material from sticking to the cutting edges of the tool to ensure you get a cleaner, more accurate result. The short, 2-flute design makes for a highly rigid tool for increased strength and reduced vibration, whilst the ball nose geometry makes them ideal for high performance contouring of complex surfaces. The S629 ball nose milling cutter is specifically intended for milling in non-ferrous materials such as aluminium.
| Usable Length (mm) | 35mm |
| Max Depth of Cut (mm) | 14mm |
| Connection Diameter (Inch) | 0.4724" |
| Cutting Diameter (Inch) | 0.4724" |
| Overall Length (Inch) | 2.9528" |
| Material Code | HM |
| Radial Rake Angle | 15 |
| No of Flute | 2 |
| Flute Helix Angle | 30 |
| Corner Radius (mm) | 6mm |
| Coating | Bright |
| Surface Color | Bright Silver |
