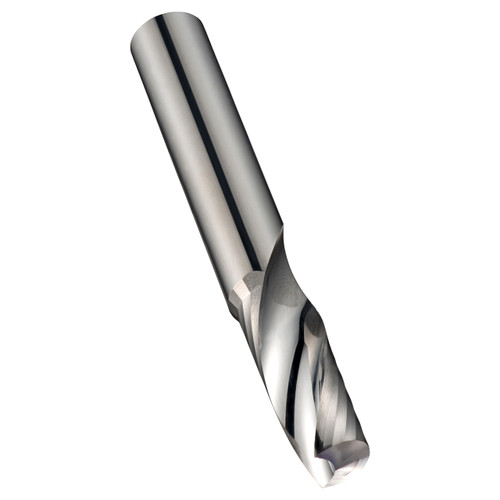

Dormer S6378.0 | 0.315" Diameter x 2.4803" OAL 1 Flute Polished Coated Square End Mill

$66.00
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25141213
Weight:
1.53 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Dormer's S637 single flute slot drill is designed specifically for high speed routing in thin wall, non-ferrous materials such as aluminium, with the single flute design giving you high performance when slotting and routing and the high hook geometry ensuring high performance machining in soft materials. S639 milling cutters are manufactured from premium carbide for longer tool life and better performance, and come with a bright polished finish, which prevents workpiece material from sticking to the cutting edges of the tool for a cleaner, more accurate result.


Product Specifications
Max Depth of Cut (mm)22mm
Connection Diameter (Inch)0.315"
Cutting Diameter (Inch)0.315"
Overall Length (Inch)2.4803"
Material CodeHM
Radial Rake Angle20
No of Flute1
Flute Helix Angle25
CoatingPolished
Surface ColorChrome

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
