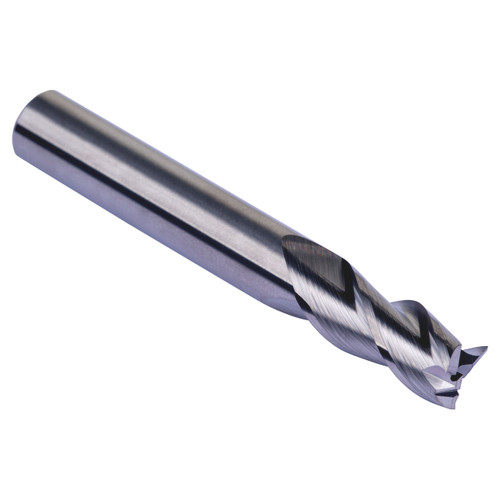

With a bright finish to reduce friction and prevent workpiece material from sticking to the cutting edges of the tool, a cleaner and more accurate finish will be achieved with S650 3-flute milling cutters. They have a differential pitch to reduce chatter and vibration for better tool life and improved surface finish, and positive geometry, giving you a smooth cutting action for high performance when milling non-ferrous materials. For improved metal removal rate at higher cutting speeds, S650 milling cutters have a 3-flute design which is very versatile and is capable of slotting, plunging, ramping and contouring.
Max Depth of Cut (mm) | 6.5mm |
Connection Diameter (Inch) | 0.1575" |
Cutting Diameter (Inch) | 0.0984" |
Overall Length (Inch) | 1.5748" |
Material Code | HM |
Radial Rake Angle | 13 |
No of Flute | 3 |
Flute Helix Angle | 40 |
Coating | Bright |
Surface Color | Bright Silver |
