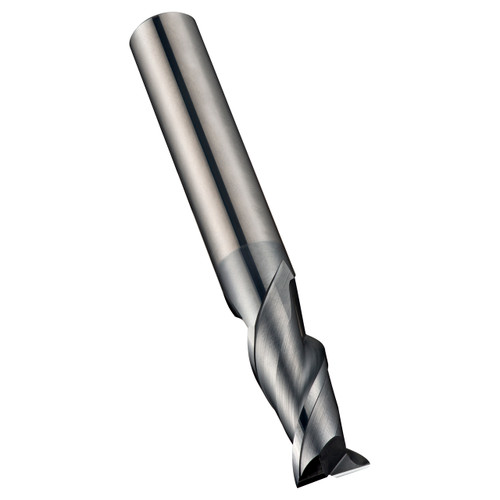

S710 2-flute milling cutters are very versatile and can be used for plunging, ramping and profile milling in steels, stainless steels and cast iron. They have an aluminium chrome nitride coating which increases the life of the tools and gives improved performance when milling difficult to machine materials. Manufactured from premium carbide to further extend tool life and give you great performance, they have a medium length flute design which gives the high rigidity needed for milling standard slots. S710 2-flute milling cutters come with a 40 degree helix, designed to give you high performance slotting on CNC machines.
Max Depth of Cut (mm) | 3mm |
Connection Diameter (Inch) | 0.1181" |
Cutting Diameter (Inch) | 0.0394" |
Overall Length (Inch) | 1.5748" |
Material Code | HM |
Radial Rake Angle | 10 |
No of Flute | 2 |
Flute Helix Angle | 40 |
Coating | AlCrN |
Surface Color | Black-Deep Purple |
