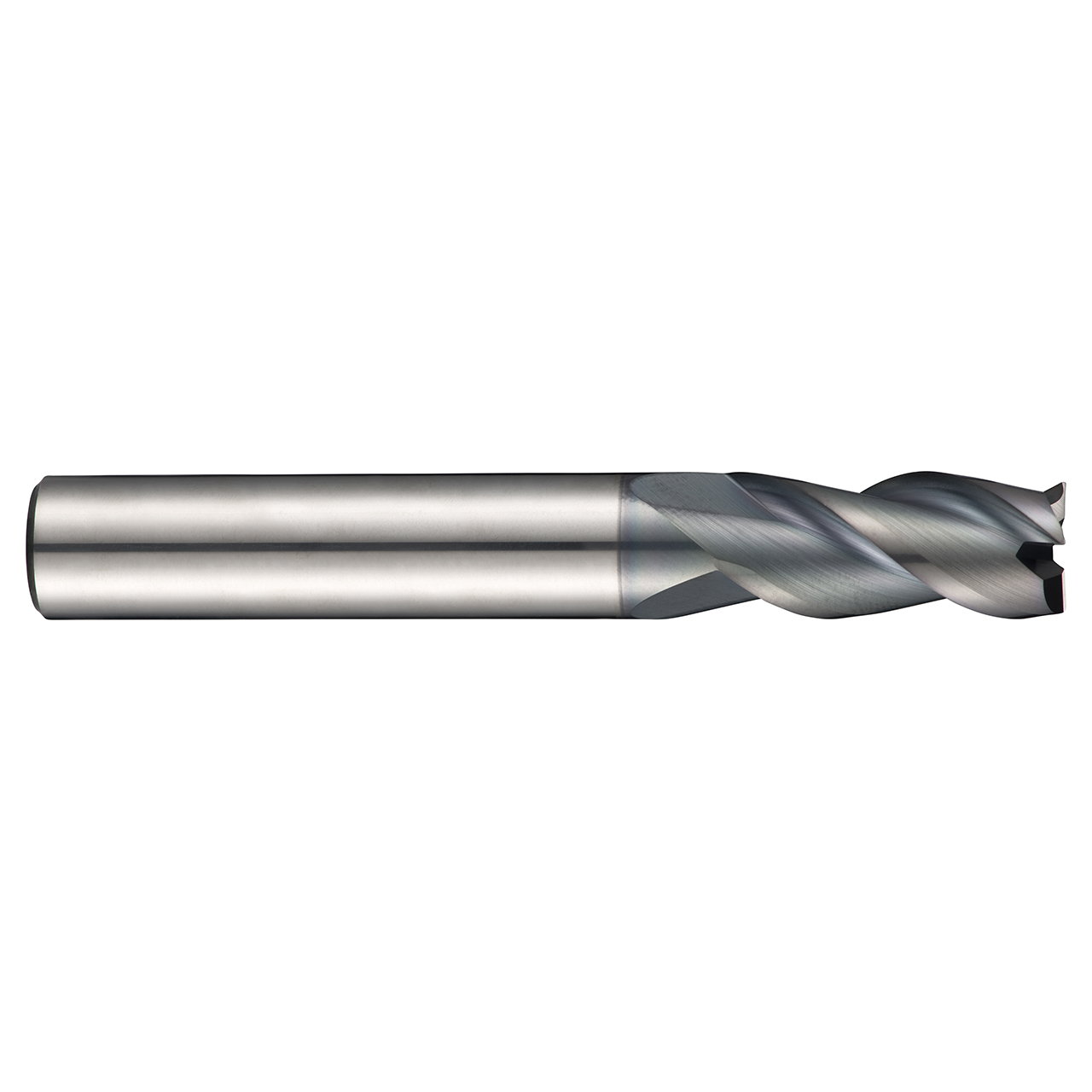

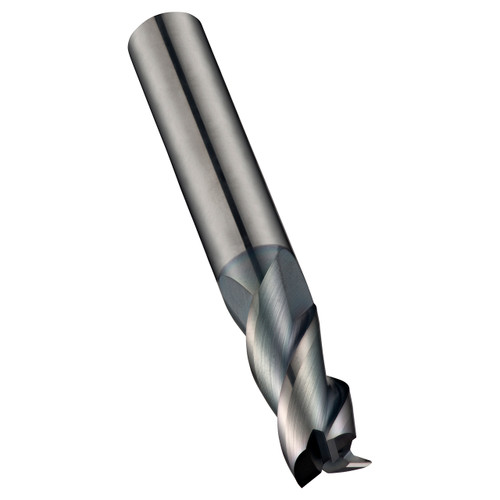

Dormer S7138.0 | 0.315" Diameter x 2.5197" OAL 3 Flute AlCrN Coated Square End Mill

$62.40
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25141374
Weight:
1.63 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

S713 3-flute milling cutters from Dormer are manufactured from premium carbide to give great performance and longer tool life and have an aluminium chrome nitride coating for improved performance when milling difficult to machine materials and further improving tool life. They come with a 40 degree helix which is great for high performance slotting and profiling on CNC machines, and the medium flute length gives you the extra rigidity needed when milling standard slots. S713 3-flute cutters are highly versatile and can be used for plunging, ramping and profile milling in stainless steels, steels and cast iron.


Product Specifications
Max Depth of Cut (mm)20mm
Connection Diameter (Inch)0.315"
Cutting Diameter (Inch)0.315"
Overall Length (Inch)2.5197"
Material CodeHM
Radial Rake Angle10
No of Flute3
Flute Helix Angle40
CoatingAlCrN
Surface ColorBlack-Deep Purple
