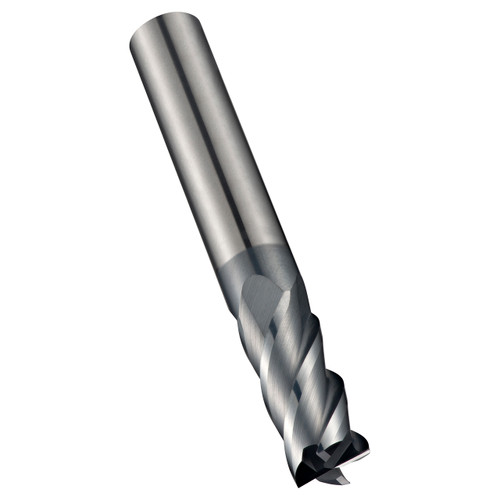

S716 4-flute milling cutters are manufactured from premium carbide for extended tool life and great performance. The aluminium nitride coating further improves tool life and gives better performance when milling difficult to machine materials. The tools are suitable for plunging, ramping and profile milling in stainless steels, cast iron and steels and have a medium length flute, designed to provide good rigidity for standard profile milling. S716 milling cutters have a 40 degree helix which makes them great for high performance slotting and profiling on CNC machines.
| Max Depth of Cut (mm) | 6.5mm |
| Connection Diameter (Inch) | 0.1575" |
| Cutting Diameter (Inch) | 0.0787" |
| Overall Length (Inch) | 1.5748" |
| Material Code | HM |
| Radial Rake Angle | 10 |
| No of Flute | 4 |
| Flute Helix Angle | 40 |
| Coating | AlCrN |
| Surface Color | Black-Deep Purple |
